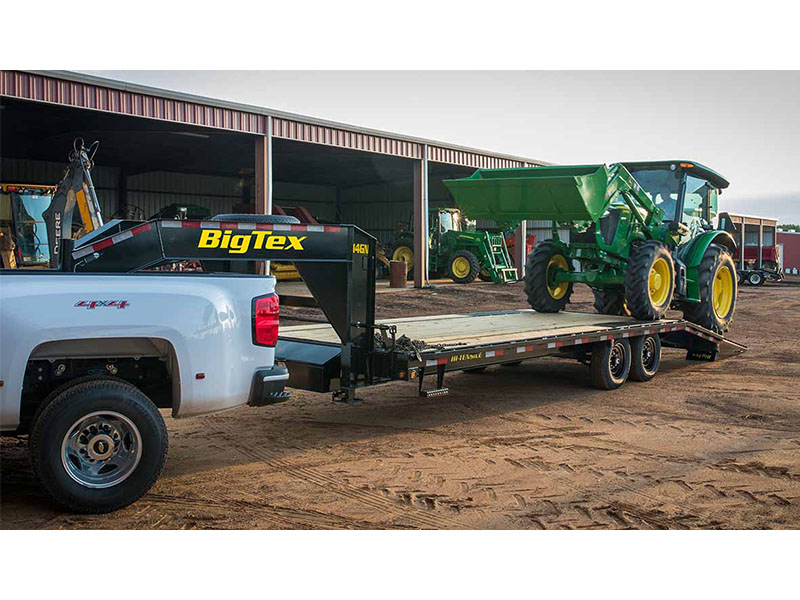

2025 Big Tex Trailers 14GN Single Wheel Tandem Axle Gooseneck Trailers 20 ft. - Dovetail in Hollister, California - Photo 1
2025 Big Tex Trailers 14GN Single Wheel Tandem Axle Gooseneck Trailers 20 ft. - Dovetail in Hollister, California - Photo 2
2025 Big Tex Trailers 14GN Single Wheel Tandem Axle Gooseneck Trailers 20 ft. - Dovetail in Hollister, California - Photo 3
2025 Big Tex Trailers 14GN Single Wheel Tandem Axle Gooseneck Trailers 20 ft. - Dovetail in Hollister, California - Photo 4
2025 Big Tex Trailers 14GN Single Wheel Tandem Axle Gooseneck Trailers 20 ft. - Dovetail in Hollister, California - Photo 5
2025 Big Tex Trailers 14GN Single Wheel Tandem Axle Gooseneck Trailers 20 ft. - Dovetail in Hollister, California - Photo 6
2025 Big Tex Trailers 14GN Single Wheel Tandem Axle Gooseneck Trailers 20 ft. - Dovetail in Hollister, California - Photo 7
2025 Big Tex Trailers 14GN Single Wheel Tandem Axle Gooseneck Trailers 20 ft. - Dovetail in Hollister, California - Photo 8
2025 Big Tex Trailers 14GN Single Wheel Tandem Axle Gooseneck Trailers 20 ft. - Dovetail in Hollister, California - Photo 9
Previous
Next
2025 Big Tex Trailers 14GN Single Wheel Tandem Axle Gooseneck Trailers 20 ft. - Dovetail in Hollister, California - Photo 1
2025 Big Tex Trailers 14GN Single Wheel Tandem Axle Gooseneck Trailers 20 ft. - Dovetail in Hollister, California - Photo 2
2025 Big Tex Trailers 14GN Single Wheel Tandem Axle Gooseneck Trailers 20 ft. - Dovetail in Hollister, California - Photo 3
2025 Big Tex Trailers 14GN Single Wheel Tandem Axle Gooseneck Trailers 20 ft. - Dovetail in Hollister, California - Photo 4
2025 Big Tex Trailers 14GN Single Wheel Tandem Axle Gooseneck Trailers 20 ft. - Dovetail in Hollister, California - Photo 5
2025 Big Tex Trailers 14GN Single Wheel Tandem Axle Gooseneck Trailers 20 ft. - Dovetail in Hollister, California - Photo 6
2025 Big Tex Trailers 14GN Single Wheel Tandem Axle Gooseneck Trailers 20 ft. - Dovetail in Hollister, California - Photo 7
2025 Big Tex Trailers 14GN Single Wheel Tandem Axle Gooseneck Trailers 20 ft. - Dovetail in Hollister, California - Photo 8
2025 Big Tex Trailers 14GN Single Wheel Tandem Axle Gooseneck Trailers 20 ft. - Dovetail in Hollister, California - Photo 9
Previous
Next

Request More Information

By pressing SUBMIT, you agree that DX1, LLC and Hollister Powersports may call/text you at the number provided, for either informational or marketing purposes, using an automatic telephone dialing system or pre-recorded/artificial voices. Msg/data rates may apply. You don’t need to consent as a condition of any purchase & you may revoke your consent at any time. You also agree to our Privacy Statement & Terms of Use.

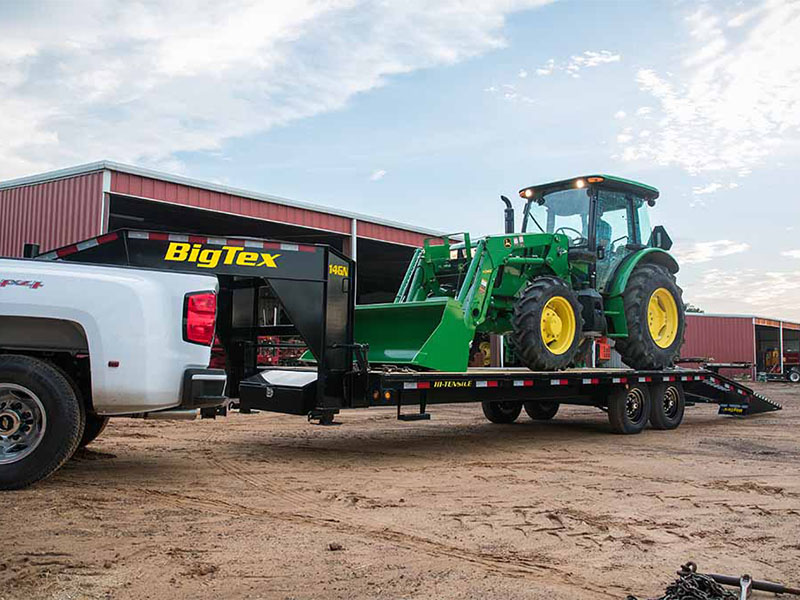

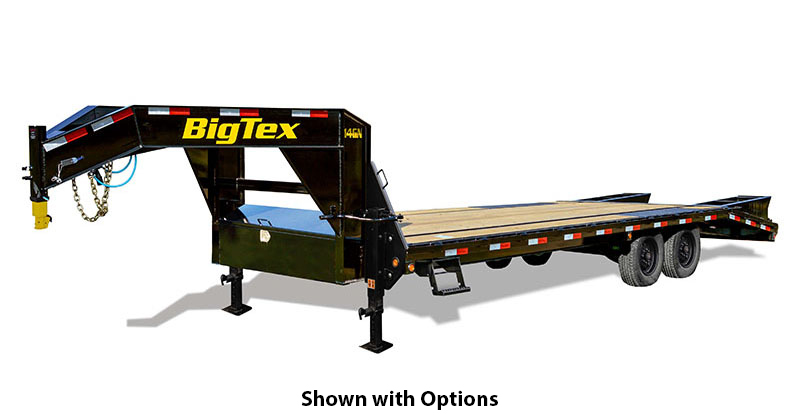

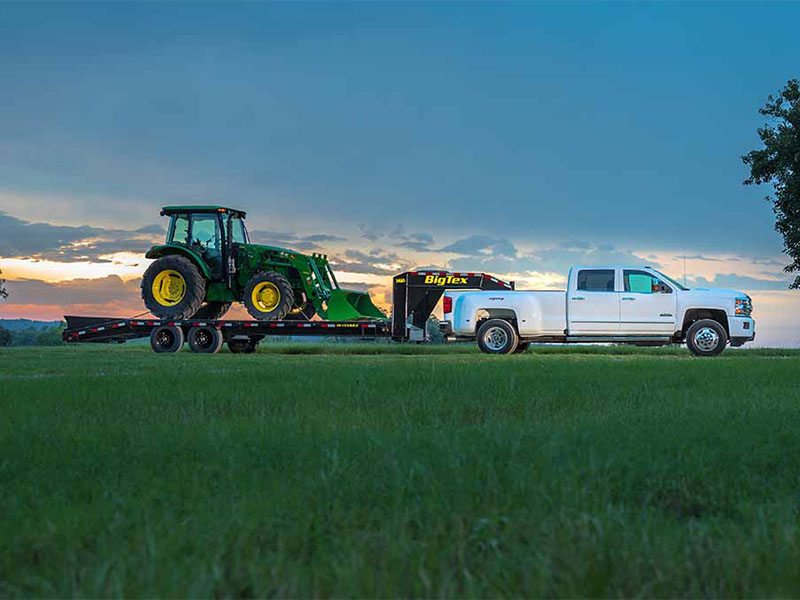

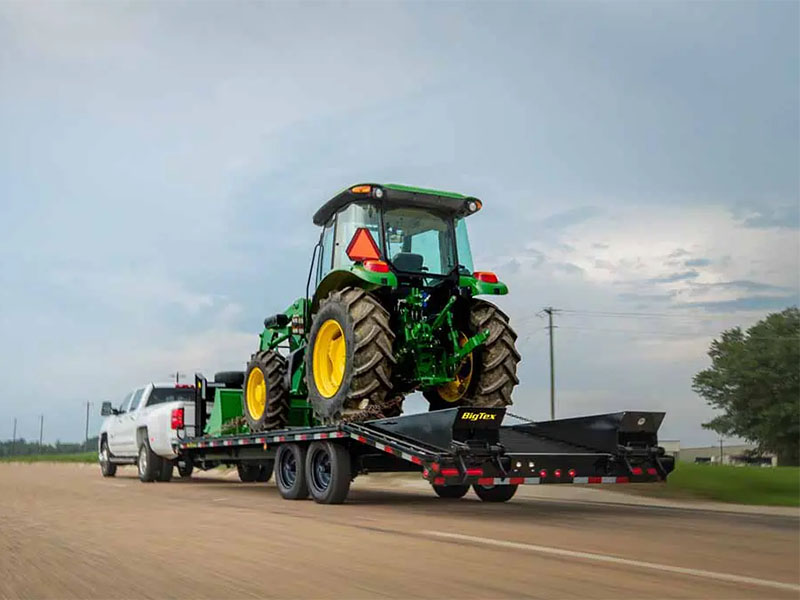

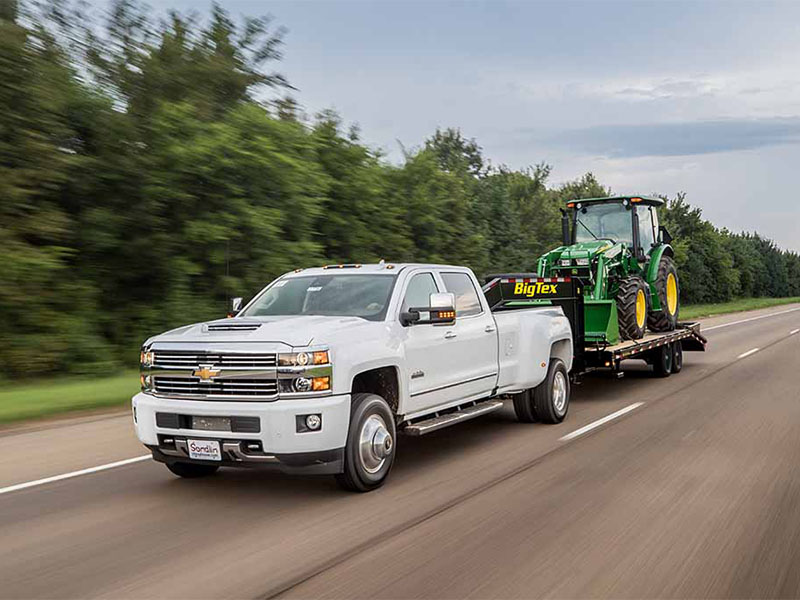

For those who pour blood, sweat, and tears into their work every day of the week, the low-profile 14GN Single Wheel Tandem Axle Gooseneck Trailer is here to make your job a little easier. A medium-duty, single-wheel gooseneck trailer that’s built for strength and durability, the 14GN delivers reliable performance for a wide range of needs for contractors, farmers, and equipment haulers. From its LED lights, treated floor, dual jacks, and adjustable coupler, this is a professional-grade trailer that’s outfitted with the features that hardworking individuals demand to get the job done.
Request More Information Print Brochure
Get Prequalified
Calculate Payment
Schedule a Test Ride Compare Models Insurance Quote

2025 Big Tex Trailers 14GN Single Wheel Tandem Axle Gooseneck Trailers 20 ft. - Dovetail

Condition
New
Category
Equipment Trailers
Model Type
Flatbed Goosenecks
Model Code
14GN-25D5A
Color
Black

Features

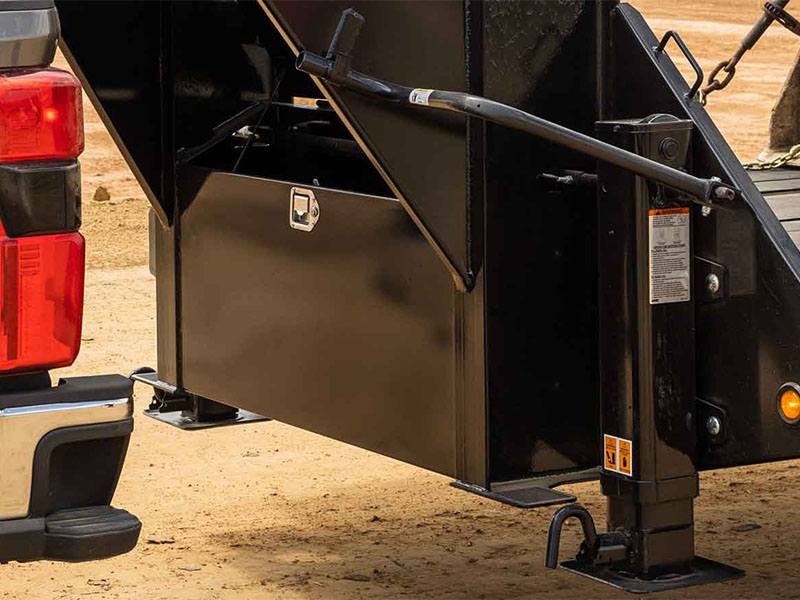

  • LARGE FRONT TOOLBOX: Provides a large amount of space to haul tools and includes an integrated binder rack.

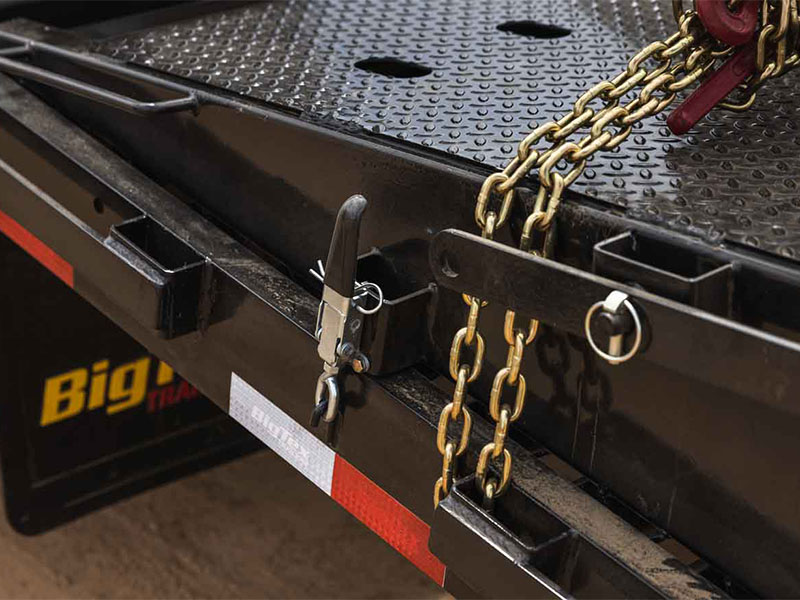

  • PIPE SPOOLS, RUB RAIL AND STAKE POCKETS: Equipped with heavy duty 3/8" side rails, stake pockets, and chain spools to maximize your ability to secure and protect whatever you’re hauling.

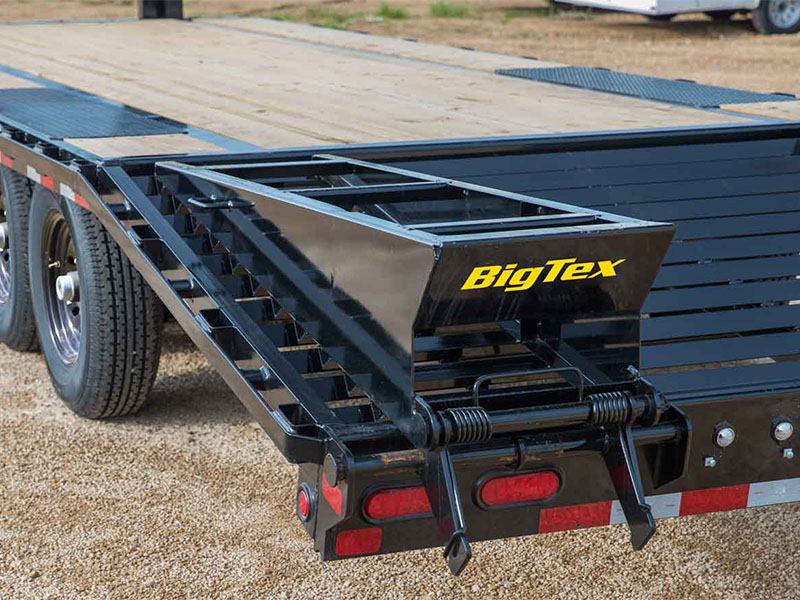

  • FLIP OVER RAMPS: 5' dovetail and 5' double-hinged spring assist flip-over ramps enable easier loading and unloading of equipment.
  • (2) Side bed steps + handles
  • Dovetail - 5 ft. cleated

General Information

Manufacturer
Big Tex Trailers
Model Year
2025
Model
14GN Single Wheel Tandem Axle Gooseneck Trailers 20 ft. - Dovetail
Model Code
14GN-25D5A
Color
Black

Body

Floor
Treated pine
Paint/Finish
Type - Professional finish with primer standard
Chain Rail Spool
Pipe chain spools - 1-1/4 in. between stake pockets pockets
Stake Pockets
Along both sides, 24 in. O.C. (Quantity varies by length)
Tongue

Length - 97 in.

Storage - Front lockable toolbox uprights with chain holder

Ramp
5 ft. double hinged spring assist flip-over
Frame

12 in. I-Beam, 14 lb.

Cross-members - 3 in. channel

Rubrail - 3/8 in. heavy duty rub rail on both sides

Main Deck Type
Dovetail

Dimensions

Deck Length
Bed - 20 ft.
Deck Width
Bed - 102 in.

Electrical

Electrical
Trailer plug - 7-way RV
Wiring
Sealed, modular cold-weather harness
Lighting

Recessed, grommet-mounted L.E.D.

Work light - Deck package with step illumination

Operational

Axles
2 - 7,000 lb. premium, with quick-lubricating hubs
Safety Features

Safety chains - 3/8 in. grade 70 with latch hook (2 ea)

Break-away kit - Complete breakaway system with Zip™ breakaway cable and charger

Coupler

2-5/16 in. Demco EZ latch gooseneck

Pull type - Gooseneck

Jack
Dual 12,000 lb. drop leg (Bolted on) with greasable handle
Suspension
Multi-leaf slipper spring with equalizer
Brakes
Forward self-adjusting electric on both axles
Tires

ST235 / 80 R-16 load range E

Radial

Spare mount - Top of neck

Spare - ST235 / 80 R-16 load range E (Included)

Wheels
Bolt pattern - 8-bolt

Weights

Weight
Empty - 5,310 lb.
Gross Vehicle Wt Rating (GVWR)
15,900 lb.
Payload Capacity
Cargo - 10,590 lb.
