2024 Big Tex Trailers 14GN Single Wheel Tandem Axle Gooseneck Trailers 36 ft.

Black • New Equipment Trailers

2024 Big Tex Trailers 14GN Single Wheel Tandem Axle Gooseneck Trailers 36 ft. in Hollister, California - Photo 1
2024 Big Tex Trailers 14GN Single Wheel Tandem Axle Gooseneck Trailers 36 ft. in Hollister, California - Photo 2
2024 Big Tex Trailers 14GN Single Wheel Tandem Axle Gooseneck Trailers 36 ft. in Hollister, California - Photo 3
2024 Big Tex Trailers 14GN Single Wheel Tandem Axle Gooseneck Trailers 36 ft. in Hollister, California - Photo 4
2024 Big Tex Trailers 14GN Single Wheel Tandem Axle Gooseneck Trailers 36 ft. in Hollister, California - Photo 5
2024 Big Tex Trailers 14GN Single Wheel Tandem Axle Gooseneck Trailers 36 ft. in Hollister, California - Photo 6
2024 Big Tex Trailers 14GN Single Wheel Tandem Axle Gooseneck Trailers 36 ft. in Hollister, California - Photo 7
2024 Big Tex Trailers 14GN Single Wheel Tandem Axle Gooseneck Trailers 36 ft. in Hollister, California - Photo 8
2024 Big Tex Trailers 14GN Single Wheel Tandem Axle Gooseneck Trailers 36 ft. in Hollister, California - Photo 9
Previous
Next
2024 Big Tex Trailers 14GN Single Wheel Tandem Axle Gooseneck Trailers 36 ft. in Hollister, California - Photo 1
2024 Big Tex Trailers 14GN Single Wheel Tandem Axle Gooseneck Trailers 36 ft. in Hollister, California - Photo 2
2024 Big Tex Trailers 14GN Single Wheel Tandem Axle Gooseneck Trailers 36 ft. in Hollister, California - Photo 3
2024 Big Tex Trailers 14GN Single Wheel Tandem Axle Gooseneck Trailers 36 ft. in Hollister, California - Photo 4
2024 Big Tex Trailers 14GN Single Wheel Tandem Axle Gooseneck Trailers 36 ft. in Hollister, California - Photo 5
2024 Big Tex Trailers 14GN Single Wheel Tandem Axle Gooseneck Trailers 36 ft. in Hollister, California - Photo 6
2024 Big Tex Trailers 14GN Single Wheel Tandem Axle Gooseneck Trailers 36 ft. in Hollister, California - Photo 7
2024 Big Tex Trailers 14GN Single Wheel Tandem Axle Gooseneck Trailers 36 ft. in Hollister, California - Photo 8
2024 Big Tex Trailers 14GN Single Wheel Tandem Axle Gooseneck Trailers 36 ft. in Hollister, California - Photo 9
Previous
Next

Request More Information

By pressing SUBMIT, you agree that DX1, LLC and Hollister Powersports may call/text you at the number provided, for either informational or marketing purposes, using an automatic telephone dialing system or pre-recorded/artificial voices. Msg/data rates may apply. You don’t need to consent as a condition of any purchase & you may revoke your consent at any time. You also agree to our Privacy Statement & Terms of Use.
For those who pour blood, sweat, and tears into their work every day of the week, the low-profile 14GN Single Wheel Tandem Axle Gooseneck Trailer is here to make your job a little easier. A medium-duty, single-wheel gooseneck trailer that’s built for strength and durability, the 14GN delivers reliable performance for a wide range of needs for contractors, farmers, and equipment haulers. The 14GN now boasts enhanced features like the Demco EZ Latch Gooseneck Coupler and TwistGuard™ Frame Design, elevating safety, efficiency, and convenience for users. Additional upgrades include a larger storage box, Helping Hands Riser Step, retractable side steps, optional Mega Ramps with Hold-Down Latches, and an integrated work lights package, all designed to streamline and secure your hauling experience.
Request More Information Print Brochure
Get Prequalified
Calculate Payment
Schedule a Test Ride Compare Models Insurance Quote

2024 Big Tex Trailers 14GN Single Wheel Tandem Axle Gooseneck Trailers 36 ft.

Condition
New
Category
Equipment Trailers
Model Type
Flatbed Goosenecks
Model Code
14GN-36
Color
Black

Features

  • INTEGRATED WORK LIGHTS: When those long days turn into late nights, utilize the integrated work lights package to illuminate the deck for a safer loading experience.

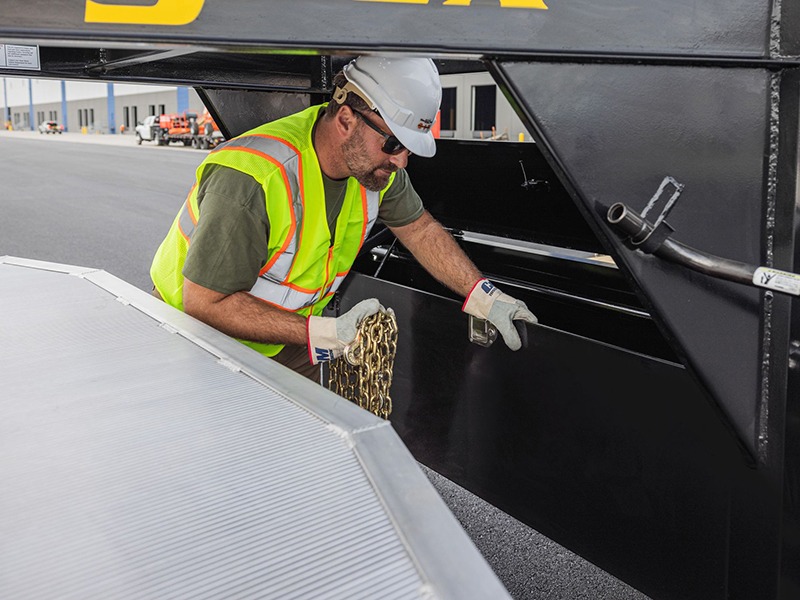

  • MEGA-SIZED LOCKABLE TOOLBOX: The mega-sized, lockable toolbox stores your gear while keeping it locked up. It also comes equipped with an integrated chain holder.

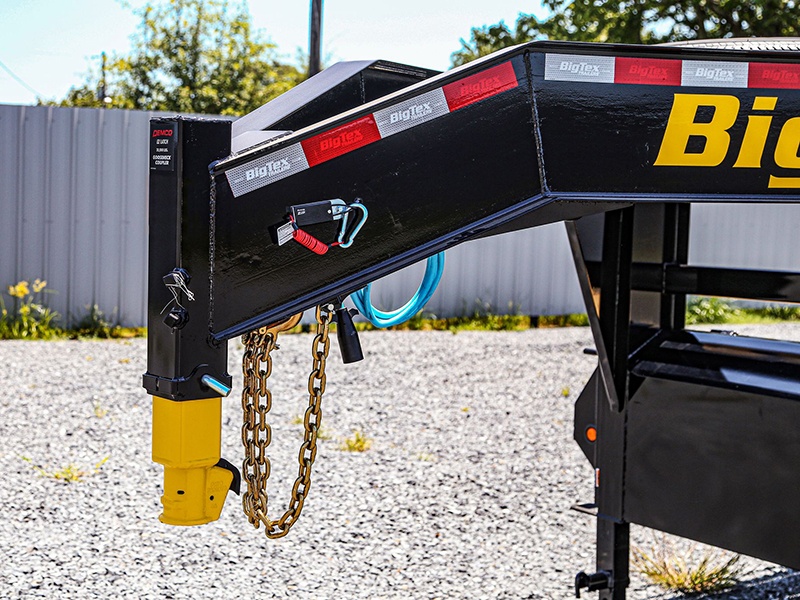

  • DEMCO EZ LATCH GOOSENECK COUPLER: The Demco EZ Latch Gooseneck Coupler is the first-of-its-kind, offering the reliability of Demco’s EZ Latch system together with custom housing for ultimate hitch-up-and-go convenience.
  • Storage - Front lockable toolbox uprights with chain holder
  • (2) Side bed steps and handles

General Information

Manufacturer
Big Tex Trailers
Model Year
2024
Model
14GN Single Wheel Tandem Axle Gooseneck Trailers 36 ft.
Model Code
14GN-36
Color
Black

Body

Floor
Treated pine or douglas fir
Paint/Finish
Type - Professional finish with primer standard
Chain Rail Spool
1-1/4 in. pipe chain spools between stake pockets
Stake Pockets
Along both sides, 24 in. O.C. (quantity varies by length)
Tongue
Length - 97 in.
Frame

12 in. I-beam, 16 lb. I-Beam

Cross-members - 3 in. channel

Rubrail - 3/8 in. heavy duty rub rail on both sides

Main Deck Type
Straight

Dimensions

Deck Length
Bed - 30 ft.
Deck Height
33 in.
Deck Width
Bed - 102 in.

Electrical

Electrical
Trailer plug - 7-way RV
Wiring
Sealed, modular cold-weather harness
Lighting
Recessed, grommet-mounted L.E.D.

Operational

Axles

2 - 7,000 lb. premium, with quick-lubricating hubs

Tandem

Safety Features

Safety chains - 3/8 in. grade 70 with safety latch hook (2 ea)

Break-away kit - Complete breakaway system with Zip™ breakaway cable and charger

Coupler

2-5/16 in. ball, adjustable pipe

Pull type - Gooseneck

Jack
Dual 12,000 lb. drop leg (bolted on) with greasable handle
Suspension
Multi-leaf slipper spring with equalizer
Brakes
Forward self-adjusting electric on both axles
Tires

ST235 / 80 R-16 load range E

Spare - ST235 / 80 R-16 load range E (Included)

Spare mount - Top of neck

Wheels
Bolt pattern - 8-bolt

Weights

Weight
Empty - 5,512 lb.
Gross Vehicle Wt Rating (GVWR)
15,900 lb.
Payload Capacity
Cargo - 10,388 lb.
