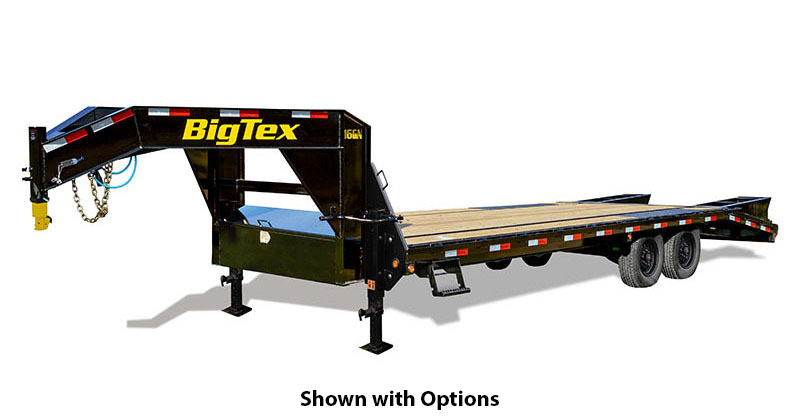

2025 Big Tex Trailers 16GN Super Duty Single Wheel Tandem Axle Gooseneck Trailers 35 ft. - Dovetail in Hollister, California - Photo 1

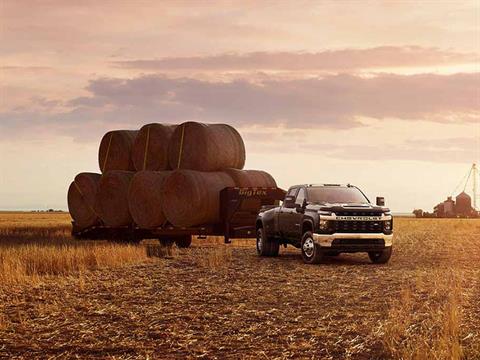

2025 Big Tex Trailers 16GN Super Duty Single Wheel Tandem Axle Gooseneck Trailers 35 ft. - Dovetail in Hollister, California - Photo 2

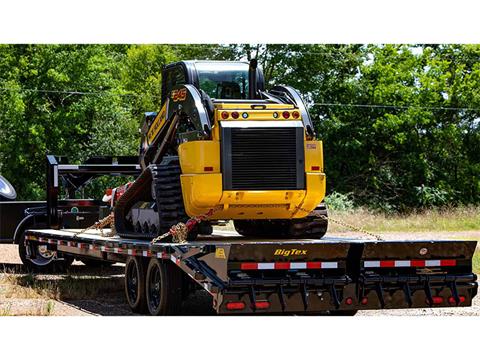

2025 Big Tex Trailers 16GN Super Duty Single Wheel Tandem Axle Gooseneck Trailers 35 ft. - Dovetail in Hollister, California - Photo 3
2025 Big Tex Trailers 16GN Super Duty Single Wheel Tandem Axle Gooseneck Trailers 35 ft. - Dovetail in Hollister, California - Photo 4
2025 Big Tex Trailers 16GN Super Duty Single Wheel Tandem Axle Gooseneck Trailers 35 ft. - Dovetail in Hollister, California - Photo 5
2025 Big Tex Trailers 16GN Super Duty Single Wheel Tandem Axle Gooseneck Trailers 35 ft. - Dovetail in Hollister, California - Photo 6
2025 Big Tex Trailers 16GN Super Duty Single Wheel Tandem Axle Gooseneck Trailers 35 ft. - Dovetail in Hollister, California - Photo 7
2025 Big Tex Trailers 16GN Super Duty Single Wheel Tandem Axle Gooseneck Trailers 35 ft. - Dovetail in Hollister, California - Photo 8
2025 Big Tex Trailers 16GN Super Duty Single Wheel Tandem Axle Gooseneck Trailers 35 ft. - Dovetail in Hollister, California - Photo 9
Previous
Next

Request More Information

By pressing SUBMIT, you agree that DX1, LLC and Hollister Powersports may call/text you at the number provided, for either informational or marketing purposes, using an automatic telephone dialing system or pre-recorded/artificial voices. Msg/data rates may apply. You don’t need to consent as a condition of any purchase & you may revoke your consent at any time. You also agree to our Privacy Statement & Terms of Use.
Need more power? The low-profile 16GN Single Wheel Tandem Axle Gooseneck Trailer has you covered. The 16GN is our super-duty, single-wheel gooseneck that delivers a whole lot more cargo capacity, all without the need for dual-wheel axles. For construction, equipment rental companies, and agricultural operations, this heavy-duty, hardworking trailer has all the features you’d expect; from a pierced beam, high tensile steel frame, and dual drop-leg jacks to an integrated toolbox and premium axles. Because for the job that you do from morning until night, you deserve a professional-grade trailer that packs the muscle you need—at a cost that doesn’t blow your budget.
Request More Information Print Brochure
Get Prequalified
Calculate Payment
Schedule a Test Ride Compare Models Insurance Quote

2025 Big Tex Trailers 16GN Super Duty Single Wheel Tandem Axle Gooseneck Trailers 35 ft. - Dovetail

Condition
New
Category
Equipment Trailers
Model Type
Flatbed Goosenecks
Model Code
16GN-35D5A
Color
Black

Features

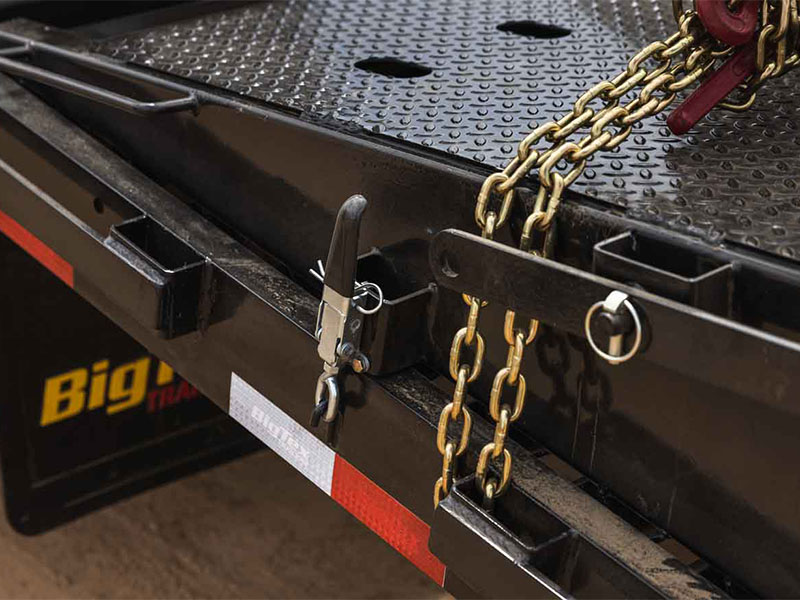

  • PIPE SPOOLS, RUB RAIL AND STAKE POCKETS: Equipped with heavy duty 3/8" side rails, stake pockets, and chain spools to maximize your ability to secure and protect whatever you’re hauling.

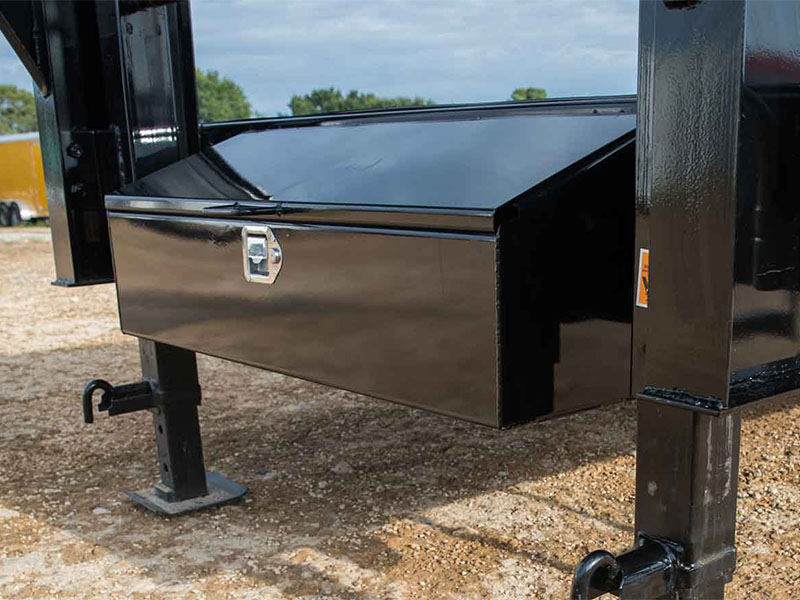

  • LOCKABLE TOOLBOX: A lockable toolbox provides a large amount of space to securely haul tools.

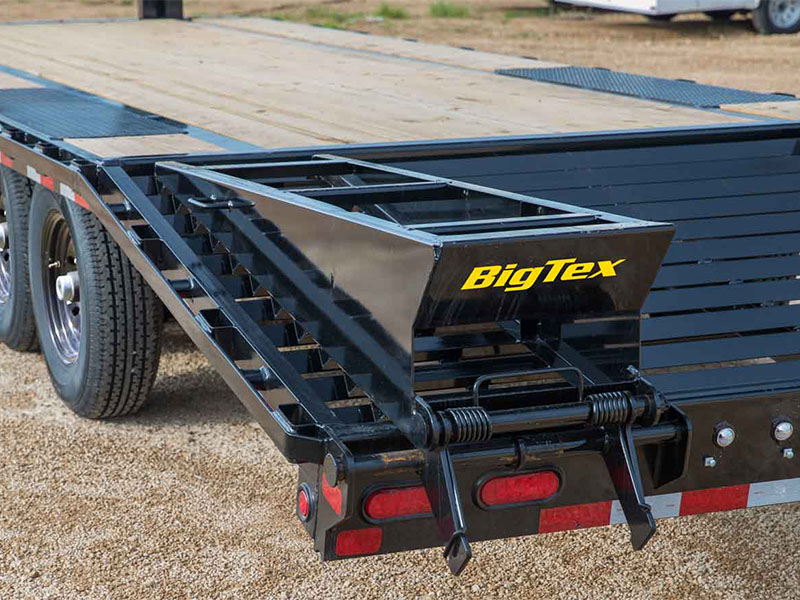

  • FLIP OVER RAMPS: 5' dovetail and 5' double-hinged spring assist flip-over ramps enable easier loading and unloading of equipment.
  • (2) Side bed steps + handles
  • Dovetail - 5 in. cleated

General Information

Manufacturer
Big Tex Trailers
Model Year
2025
Model
16GN Super Duty Single Wheel Tandem Axle Gooseneck Trailers 35 ft. - Dovetail
Model Code
16GN-35D5A
Color
Black

Body

Floor
Treated pine
Paint/Finish
Paint type - Professional finish with primer standard
Chain Rail Spool
Pipe chain spools - 1-1/4 in. between stake pockets pockets
Stake Pockets
Along both sides, 24 in. O.C. (Quantity varies by length)
Tongue

Length - 97 in.

Storage - Front lockable toolbox uprights with chain holder

Ramp
5 in. Double hinged spring assist flip-over
Frame

12 in. I-Beam, 16 lb.

Cross-members - 3 in. channel

Rubrail - 3/8 in. heavy duty rub rail on both sides

Main Deck Type
Dovetail

Dimensions

Deck Length
Bed - 35 ft.
Deck Width
Bed - 102 in.

Electrical

Electrical
Trailer plug - 7-way RV
Wiring
Sealed, modular cold-weather harness
Lighting

Recessed, grommet-mounted L.E.D.

Work light - Deck package with step illumination

Operational

Axles
2 - 8,000 lb. dual wheel with quick lubricating hubs
Safety Features

Safety chains - 3/8 in. grade 70 with latch hook (2 ea)

Break-away kit - Complete breakaway system with Zip™ breakaway cable and charger

Coupler

2-5/16 lb. Demco EZ latch gooseneck

Pull type - Gooseneck

Jack
Dual 12,000 lb. drop leg (bolted on) with greasable handle
Suspension
Multi-leaf slipper spring with equalizer
Brakes
Forward self-adjusting electric on both axles
Tires

ST215 / 75 R-17.5 load range H

Spare mount - Top of neck

Wheels
Bolt pattern - 8-bolt

Weights

Weight
Empty - 6,790 lb.
Gross Vehicle Wt Rating (GVWR)
17,500 lb.
Payload Capacity
Cargo - 10,710 lb.
