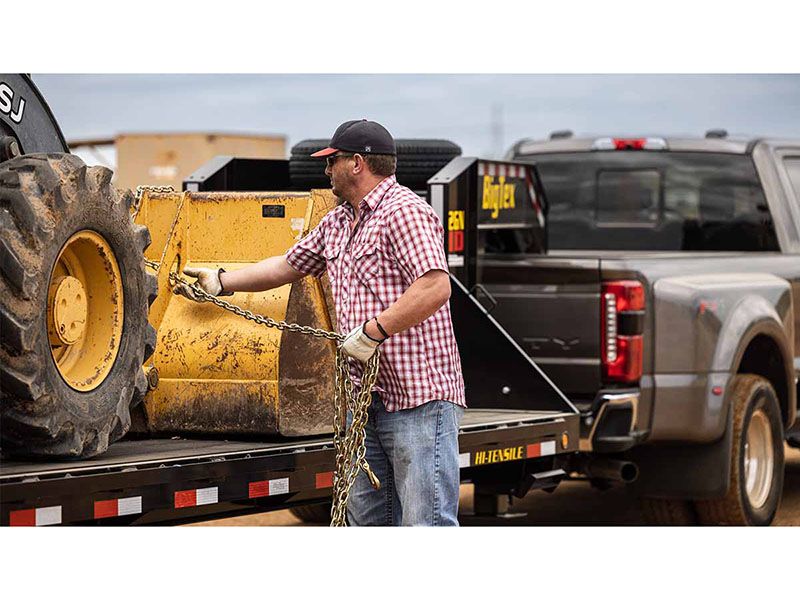

2024 Big Tex Trailers 22GN Tandem Dual Wheel Gooseneck Trailers 30 ft. in Hollister, California - Photo 1
2024 Big Tex Trailers 22GN Tandem Dual Wheel Gooseneck Trailers 30 ft. in Hollister, California - Photo 2
2024 Big Tex Trailers 22GN Tandem Dual Wheel Gooseneck Trailers 30 ft. in Hollister, California - Photo 3
2024 Big Tex Trailers 22GN Tandem Dual Wheel Gooseneck Trailers 30 ft. in Hollister, California - Photo 4
2024 Big Tex Trailers 22GN Tandem Dual Wheel Gooseneck Trailers 30 ft. in Hollister, California - Photo 5
2024 Big Tex Trailers 22GN Tandem Dual Wheel Gooseneck Trailers 30 ft. in Hollister, California - Photo 6
2024 Big Tex Trailers 22GN Tandem Dual Wheel Gooseneck Trailers 30 ft. in Hollister, California - Photo 7
2024 Big Tex Trailers 22GN Tandem Dual Wheel Gooseneck Trailers 30 ft. in Hollister, California - Photo 8
2024 Big Tex Trailers 22GN Tandem Dual Wheel Gooseneck Trailers 30 ft. in Hollister, California - Photo 9
Previous
Next

Request More Information

By pressing SUBMIT, you agree that DX1, LLC and Hollister Powersports may call/text you at the number provided, for either informational or marketing purposes, using an automatic telephone dialing system or pre-recorded/artificial voices. Msg/data rates may apply. You don’t need to consent as a condition of any purchase & you may revoke your consent at any time. You also agree to our Privacy Statement & Terms of Use.

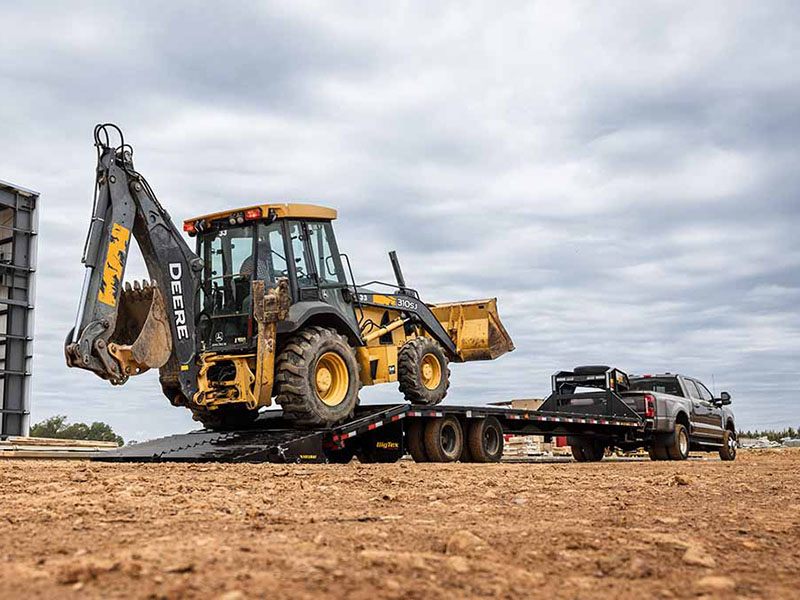

Ready for the ultimate gooseneck trailer? A premium trailer providing long-lasting durability, the 22GN Tandem Dual Flatbed Gooseneck Trailer is built to work the toughest jobs in the most rugged conditions. From its dual 2-Speed 50K landing gear to HD adjustable suspension, it’s designed to handle heavy-duty hauling needs, particularly for transporting heavy construction equipment and hotshotting.
Request More Information Print Brochure
Get Prequalified
Calculate Payment
Schedule a Test Ride Compare Models Insurance Quote

2024 Big Tex Trailers 22GN Tandem Dual Wheel Gooseneck Trailers 30 ft.

Condition
New
Category
Equipment Trailers
Model Type
Flatbed Goosenecks
Model Code
22GN-30STA
Color
Black

Features

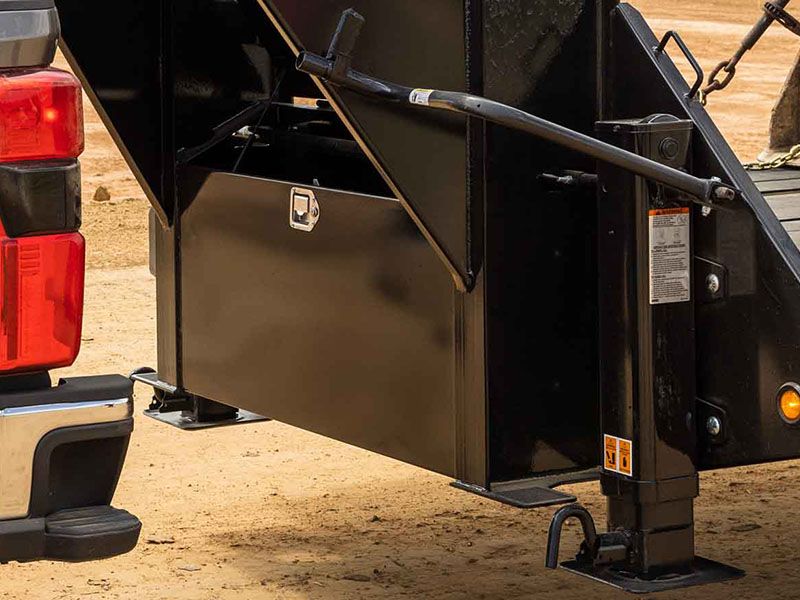

  • LARGE FRONT TOOLBOX: Provides a large amount of space to haul tools and includes an integrated binder rack.

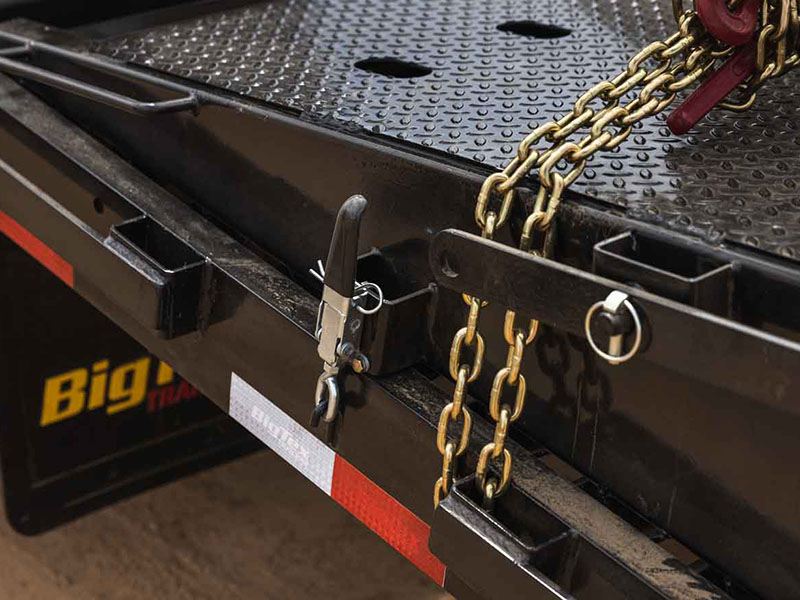

  • PIPE SPOOLS, RUB RAIL AND STAKE POCKETS: Equipped with heavy duty 3/8" side rails, stake pockets, and chain spools to maximize your ability to secure and protect whatever you’re hauling.
  • OIL BATH AXLES WITH FORWARD SELF ADJUSTING BRAKES AND VALCRUM CAPS: Designed with reliability in mind, these axles provide long-term durability and hauling strength along with being easier to maintain.
  • Storage - Front lockable toolbox uprights with chain holder
  • (2) Retractable side bed steps + handles
  • Helping hand riser step

General Information

Manufacturer
Big Tex Trailers
Model Year
2024
Model
22GN Tandem Dual Wheel Gooseneck Trailers 30 ft.
Model Code
22GN-30STA
Color
Black

Body

Floor
Treated pine or douglas fir
Paint/Finish
Paint type - Professional finish with primer standard
Chain Rail Spool
Pipe chain spools - 1-1/4 in. between stake pockets pockets
Stake Pockets
Along both sides, 24 in. O.C. (Quantity varies by length)
Tongue
Length - 97 in.

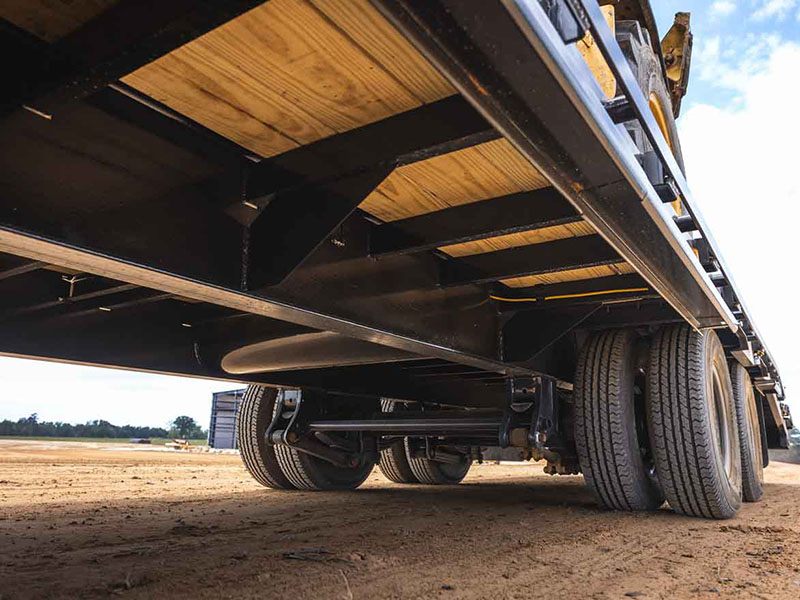

Frame

12 in. I-Beam, 19 lb.

Cross-members - 3 in. channel

Rubrail - 3/8 in. heavy duty rub rail on both sides

6 in. channel outer

Dimensions

Deck Length
Bed - 30 ft.
Deck Width
Bed - 102 in.

Electrical

Electrical
Trailer plug - 7-way RV
Wiring
Sealed, modular cold-weather harness
Lighting

Recessed, grommet-mounted L.E.D.

Work light - Deck work light package with step illumination

Operational

Axles
2 - 10,000 lb. dual wheel with oil bath and Valcrum caps
Safety Features
Safety chains - 3/8 in. Grd. 70 with safety latch hook (2 ea)

Break-away kit - Complete breakaway system with Zip™ breakaway cable and charger

Coupler

2-5/16 in. Demco EZ Latch gooseneck

Pull type - Gooseneck

Jack
Dual two speed landing gear- 50K lb. capacity (Bolted on)
Suspension
Heavy-duty 30,000 lb. adjustable
Brakes
Forward self-adjusting electric on both axles
Tires

ST235 / 80 R-16 load range E (Dual)

Radial

Spare mount - Top of neck

Spare - ST235 / 80 R-16 load range E (Included)

Wheels

Bolt pattern - 8-bolt

Black mod

Mudflaps - Standard

Weights

Gross Vehicle Wt Rating (GVWR)
23,900 lb.
