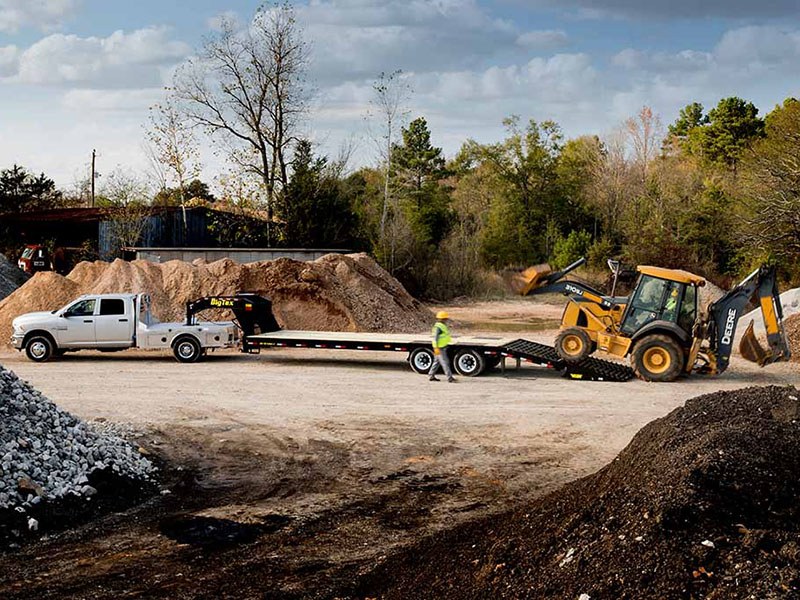

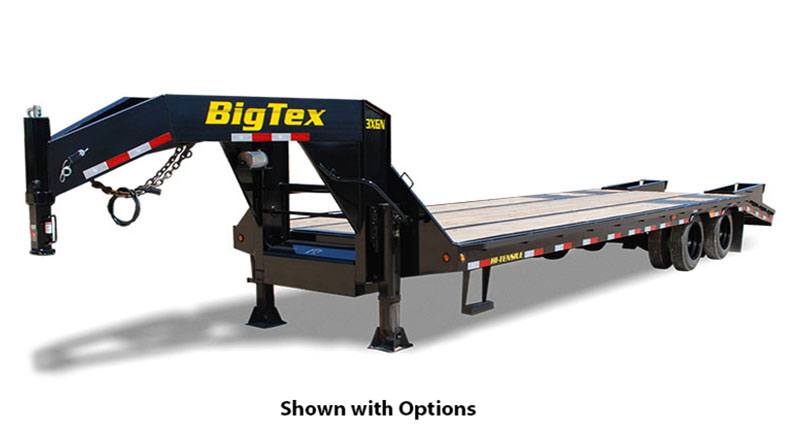

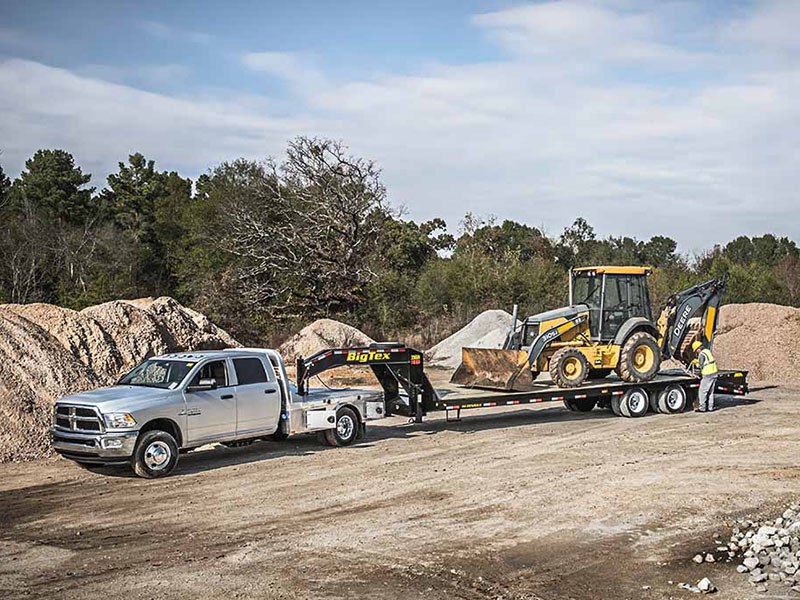

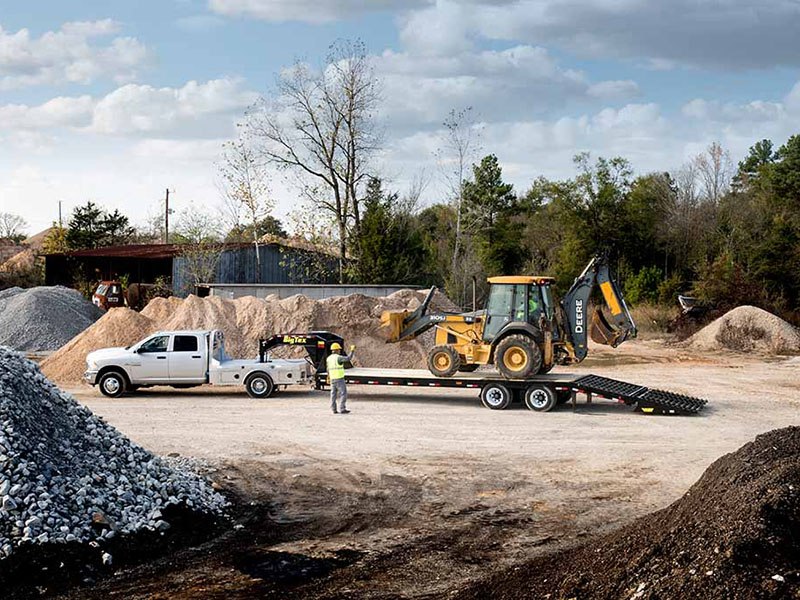

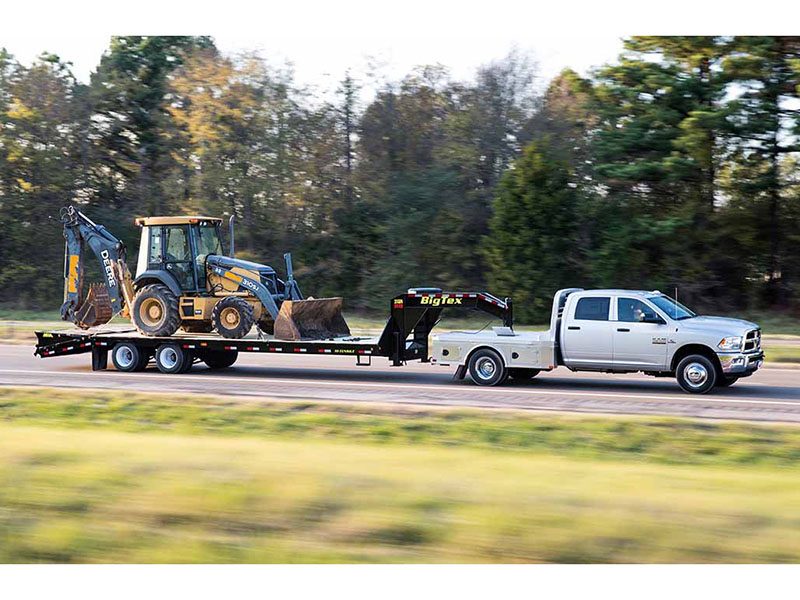

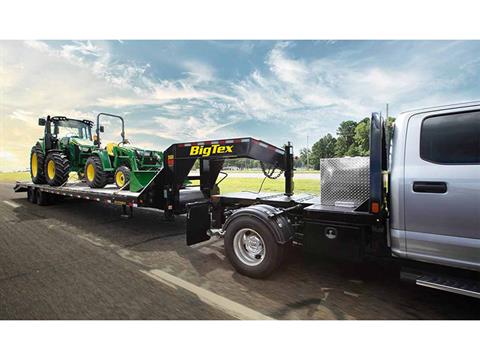

Haul big and heavy with the 3XGN Super Duty Tandem Dual Gooseneck Trailer, a super heavy-duty gooseneck trailer that’s packing 15,000-lb axles to transport the heaviest equipment—even in difficult and rugged conditions. That’s why this trailer is designed with a 30,000 lbs G.V.W.R., giving construction contractors, industrial operations, and heavy equipment dealers the strength and dependability needed to handle their day-to-day grind. From top to bottom, it’s built to work hard just like you do.
Request More Information Print Brochure
Get Prequalified
Calculate Payment
Schedule a Test Ride Compare Models Insurance Quote

2024 Big Tex Trailers 3XGN Super Duty Tandem Dual Gooseneck Trailers 25+5 ft.

Condition
New
Category
Equipment Trailers
Model Type
Flatbed Goosenecks
Model Code
3XGN-25+5
Color
Black

Features

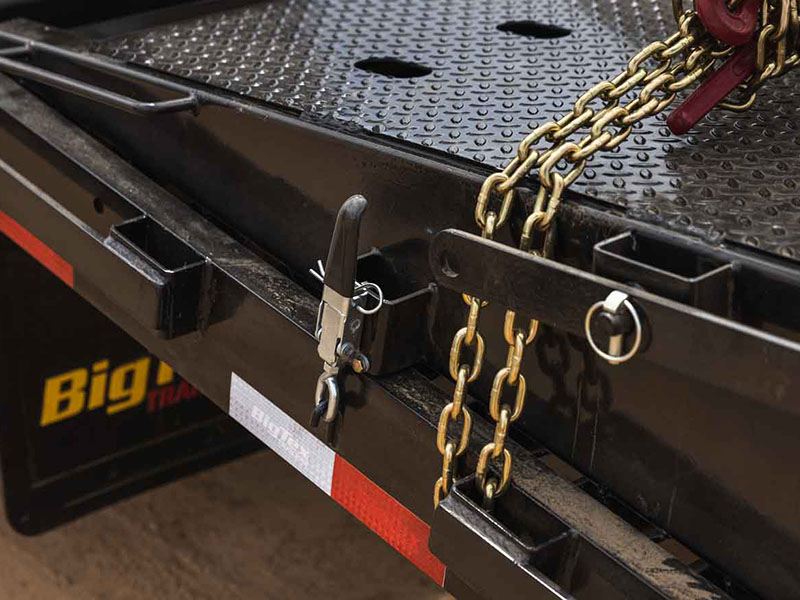

  • PIPE SPOOLS, RUB RAIL AND STAKE POCKETS: Equipped with heavy duty 3/8" side rails, stake pockets, and chain spools to maximize your ability to secure and protect whatever you’re hauling.
  • OIL BATH AXLES WITH FORWARD SELF ADJUSTING BRAKES AND VALCRUM CAPS: Designed with reliability in mind, these axles provide long-term durability and hauling strength along with being easier to maintain.

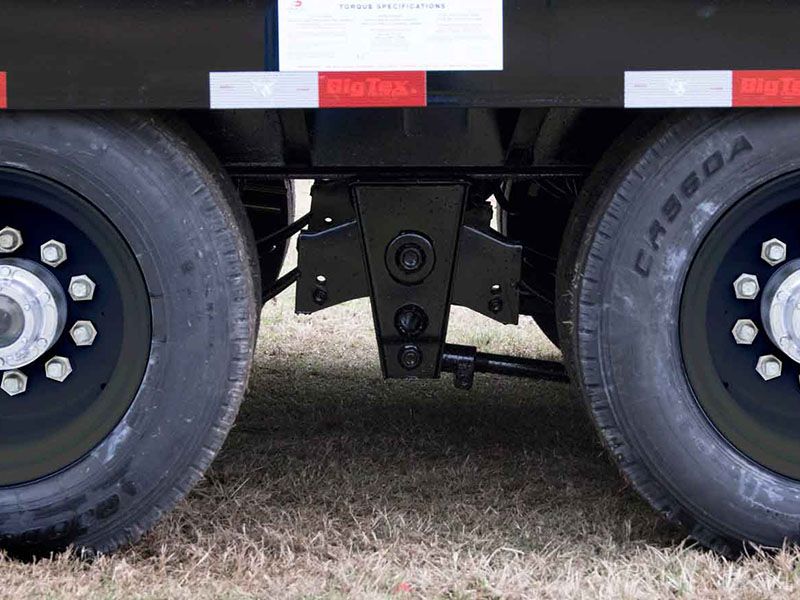

  • HEAVY-DUTY ADJUSTABLE SUSPENSION: Standard equipped with a heavy duty adjustable suspension to handle the biggest loads.

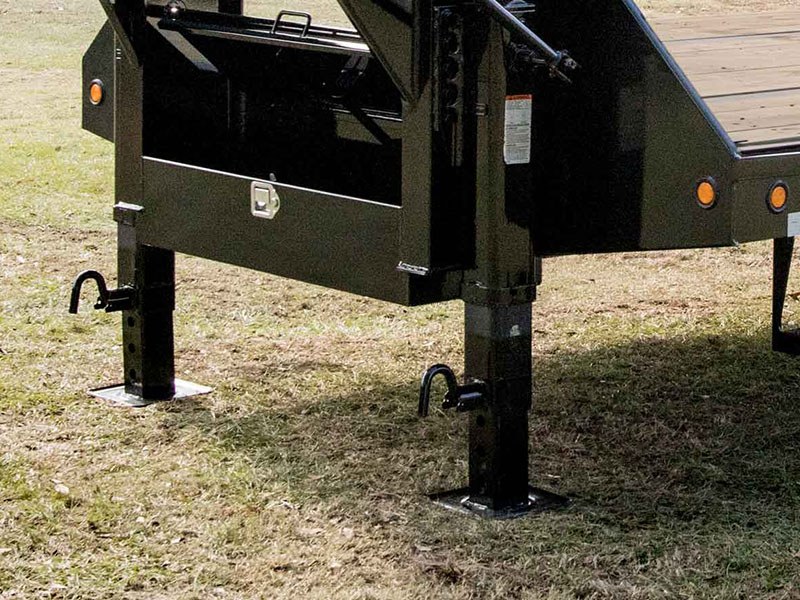

  • DUAL TWO SPEED LANDING GEAR: Always ready to help stabilize your load during loading, unloading, or storage.
  • Dovetail - 5 ft. cleated
  • Storage - Front lockable toolbox uprights
  • (2) Retractable side bed steps + handles
  • Cargo winch - Sliding winch track

General Information

Manufacturer
Big Tex Trailers
Model Year
2024
Model
3XGN Super Duty Tandem Dual Gooseneck Trailers 25+5 ft.
Model Code
3XGN-25+5
Color
Black

Body

Floor
Treated pine or douglas fir
Paint/Finish
Paint type - Professional finish with primer standard
Chain Rail Spool
Pipe chain spools - 1-1/4 in. between tie down pockets pockets
Stake Pockets
Along both sides, 24 in. O.C. (Quantity varies by length)
Tongue
Length - 97 in.
Ramp
5 ft. double hinged spring assist flip-over

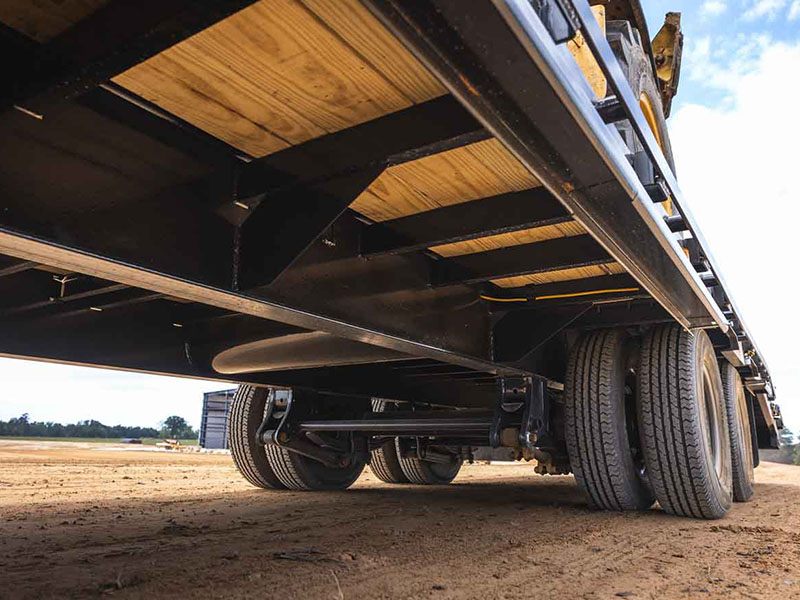

Frame

12 in. I-Beam, 22 lb.

Cross-members - 6 in. I-Beam, 16 in. centers

Rubrail - 3/8 in. heavy duty rub rail on both sides

Twist Guard™

Dimensions

Deck Length
Bed - 30 ft.
Deck Height
34 in.
Deck Width
Bed - 102 in.

Electrical

Electrical
Trailer plug - 7-way RV
Wiring
Sealed, modular cold-weather harness
Lighting
Recessed, grommet-mounted L.E.D.

Operational

Axles

2 - 15,000 lb. dual wheel with oil bath and Valcrum caps

Tandem

Safety Features

Safety chains - 1/2 in. grade 80 with safety latch hook (2 ea)

Break-away kit - Complete breakaway system with Zip™ breakaway cable and charger

Coupler

2-5/16 in. ball adjustable square crank

Pull type - Gooseneck

Jack
Dual two speed landing gear - 50K lb. capacity (Bolted on)
Suspension
Heavy duty 44,000 lb. adjustable
Brakes
Forward self-adjusting electric on both axles
Tires

ST215 / 75 R-17.5 load range H (Dual)

Spare mount - Top of neck

Spare - ST215 / 75 R-17.5 LR-H

Wheels

17.5 in. HC x 6.75 in., 8 x 275 MM BC hub pilot; Dual

Mudflaps - Standard

Weights

Weight
Empty - 8,440 lb.
Gross Vehicle Wt Rating (GVWR)
30,000 lb.
Payload Capacity
Cargo - 21,560 lb.
