Need an extra-wide trailer for medium loads and larger equipment? Then the 10LX Pro Series Tandem Axle Extra Wide Dump Trailer is for you. A medium-duty dump trailer, the 10LX comes with an 83’’ wide bed, giving you extra cargo width for bigger loads. Plus, it’s equipped with a self-contained electric and hydraulic scissor hoist that’s purpose-built to make dumping and spreading agregates (such as sand, gravel, crushed stone, and slag) an easier task than ever before.
Request More Information Print Brochure
Get Prequalified
Calculate Payment
Compare Models Insurance Quote

2024 Big Tex Trailers 10LX Pro Series Tandem Axle Extra Wide Dump Trailers 10 ft.

Condition
New
Category
Utility Trailers
Model Type
Light-Commercial Dump Trailers
Model Code
10LX-10
Color
Black

Features

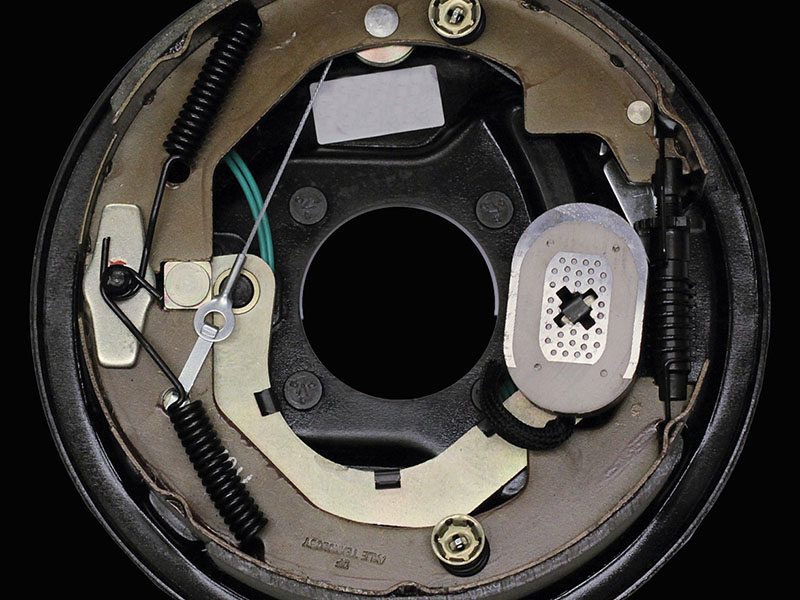

  • EFFORTLESS MAINTENANCE: Forward, self-adjusting brakes make brake maintenance a breeze. The system automatically adjusts the brake shoes as they wear down, eliminating the need for manual adjustments.

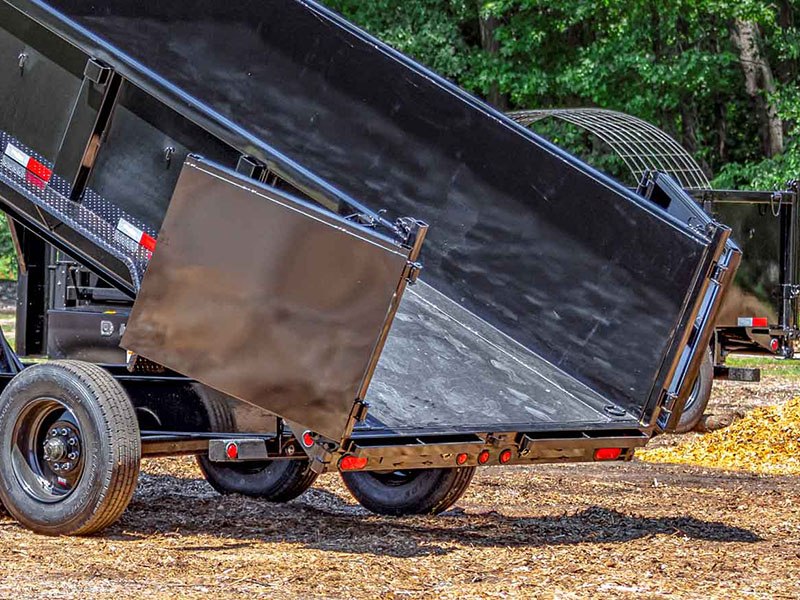

  • REAR COMBO GATE: A multi-functional rear gate with both barn doors and spreader gate that makes it easy to load, unload, or spread

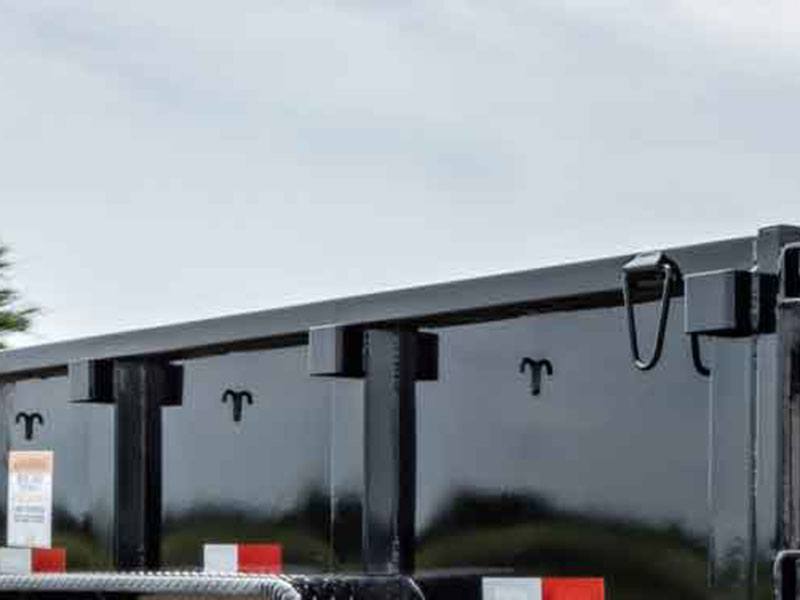

  • STRENGTH AND VERSATILITY: This model has a 2" square tubing top rail for added strength, to complement the stake pockets for added cargo control and ability to support aftermarket side extensions.
  • 10-GAUGE STEEL FLOOR: Built for long-lasting durability that’s easy to maintain, its heavy floor can take a beating and keep going
  • Ram - Self-contained single cylinder lift
  • Storage - Lockable pump and battery box mounted in front of bed
  • Tarp - Tarp mounting brackets on front of bed

General Information

Manufacturer
Big Tex Trailers
Model Year
2024
Model
10LX Pro Series Tandem Axle Extra Wide Dump Trailers 10 ft.
Model Code
10LX-10
Color
Black

Body

Floor
10 ga. smooth steel
Sides

24 in. tall (12 ga.)

Stake pockets - Along both sides (Quantity varies by length)

Dimensions

Weight
Empty - 3,160 lb.
Bed Length
10 ft.
Bed Width
83 in.
Deck Height
31-3/4 in.
Side Height
Dump - 24 in.
Gross Vehicle Weight Rating (GVWR)
9,990 lb.

Operational

Brakes
Forward self-adjusting electric
Tires

ST235 / 80 R-16 load range E radial

Spare mount - Side

Carrying Capacity

Load - 6,490 lb.

Cargo - 5.2 cu. yd.

Doors
Gate - Rear combo gate (Barn and spreader gate)
Fenders
9 x 72 in. 14 ga. diamond plate double square broke
Tongue

6 in. channel

Length - 41 in.

Electrical

Trailer plug - 7-way RV

Lights - Recessed, grommet-mounted L.E.D. lighting

Wiring - Sealed, modular cold-weather harness

Battery - 12V deep cycle

Charger - 5A 110V on board battery charger

Power - Power up / Gravity down movement

Axle(s)

Tandem

2 - 5,200 lb. premium, cambered with quick-lubricating hubs

Coupler

Adjustable forged 2-5/16 in.

Pull type - Bumperpull

Jack
8,000 lb. top wind drop leg

Other

Frame

6 in. channel

Cross-members - 3 in. channel on 16 in. centers

Top rail - 2 x 2 in. square tubing

Paint
Type - Professional finish with primer standard
Suspension
Multi-leaf slipper spring with equalizer
Wheels
Bolt pattern - 6-Lug
Safety Features

Safety chains - 1/4 in. Grd. 70 with safety latch hook (2 each)

Tie-downs - (4) 1/2 in. D-rings inside bed to secure equipment, Along sides and rear for cargo control

Break-away kit - Complete system with breakaway cable
