Tested Big Tex Tough. Value Guaranteed. The 14LX offers unbeatable value without sacrificing quality. Designed with a robust 6-inch channel frame and tongue, it ensures exceptional strength and durability. Its affordable price point includes essential features such as a hydraulic scissor lift system with power up, power down, and gravity down capabilities, forward self-adjusting brakes, and a heavy-duty adjustable coupler. Perfect for hauling both equipment and loose materials, the 14LX guarantees reliable performance for the toughest jobs. Discover the value-driven 14LX and experience premium quality at an economical price.
Request More Information Print Brochure
Get Prequalified
Calculate Payment
Compare Models Insurance Quote

2025 Big Tex Trailers 14LX Channel Tandem Axle Dump Trailers

Condition
New
Category
Utility Trailers
Model Type
Commercial-Grade Dump Trailers
Model Code
14LX-14
Color
Black

Features

  • FEATURE PACKED: These models come standard with all the essentials, including a 7K Jack, Rear Stabilizer Jacks, Tarp Kit, Onboard Battery Charger, and Rear Combo Gates.

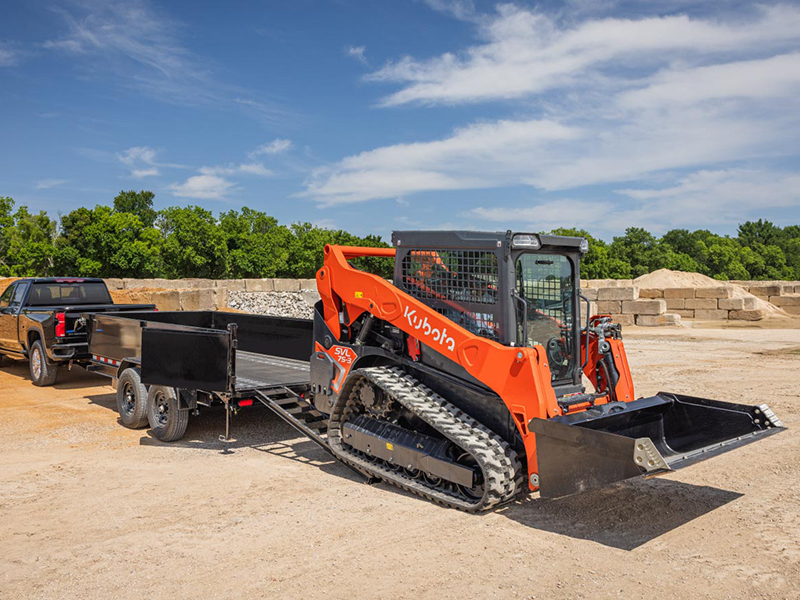

  • EQUIPMENT READY-DESIGN: This model is standard equipped with slide in ramps, rear stabilizers and D-rings for loading and hauling your equipment.

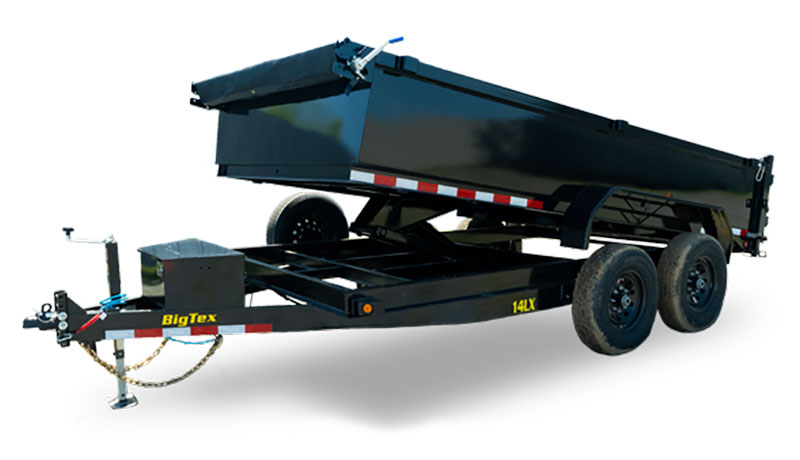

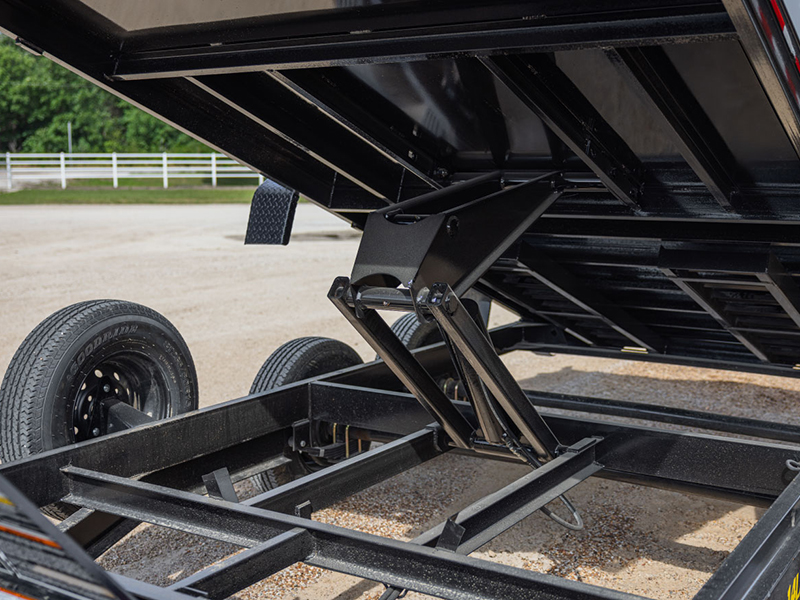

  • POWER UP/POWER DOWN & GRAVITY DOWN: Equipped with a Hydraulic Scissor Lift System featuring power up/power down and gravity down capabilities, this trailer achieves over 20% more cycles compared to traditional power up/power down systems.
  • J-Hooks - Along sides and rear for cargo control
  • Ram - Self-contained scissor
  • Tarp - Fully-formed shroud with tarp and rear rod holders

General Information

Manufacturer
Big Tex Trailers
Model Year
2025
Model
14LX Channel Tandem Axle Dump Trailers
Model Code
14LX-14
Color
Black

Body

Floor
10 ga. smooth steel
Sides

24 in. tall (10 ga.) with formed channel supports

Stake pockets - Along both sides (Quantity varies by length)

Dimensions

Weight
Empty - 3,660 lb.
Bed Length
14 ft.
Bed Width
83 in.
Side Height
Dump - 24 in. or 48 in.
Gross Vehicle Weight Rating (GVWR)
14,000 lb.

Operational

Brakes
Forward self-adjusting electric on all hubs
Tires

ST235 / 80 R-16 Load range-E 10 ply radial

Spare mount - Side

Carrying Capacity

Cargo - 10,340 lb.

Cargo - 7.2 cu. yd.

Doors
Gate - Rear combo gate (Barn and spreader gate)
Fenders
9 x 72 in. 14 ga. diamond plate double square broke
Tongue

6 in. Channel

Length - 51-1/8 in.

Storage - Lockable pump and battery box mounted in front of bed

Electrical

Trailer plug - 7-Way RV

Lights - Recessed, grommet-mounted L.E.D. lighting

Wiring - Sealed, modular cold-weather harness

Battery - 12V deep cycle

Charger - 5A 110V on board battery

Power - Power Up / Power Down and gravity down hydraulic pump

Axle(s)
2 - 7,000 lb. premium, cambered with quick-lubricating hubs
Ramp
6.5 ft. slide in ramps with integrated door
Coupler

Pull type - Bumperpull

Adjustable 2-5/16 in.

Jack
7,000 lb. Top wind drop leg

Other

Frame

6 in. Channel

Cross-members - 3 in. Channel on 16 in. centers

Stabilizers - Rear stands

Top rail - 3 x 2 in. rectangular tubing

Paint
Type - Professional finish with primer standard
Suspension
Multi-leaf spring with equalizer
Wheels

Black mod steel

Bolt pattern - 6 Bolt

Safety Features

Safety chains - 3/8 in. grade 70 with safety latch hook (2 ea)

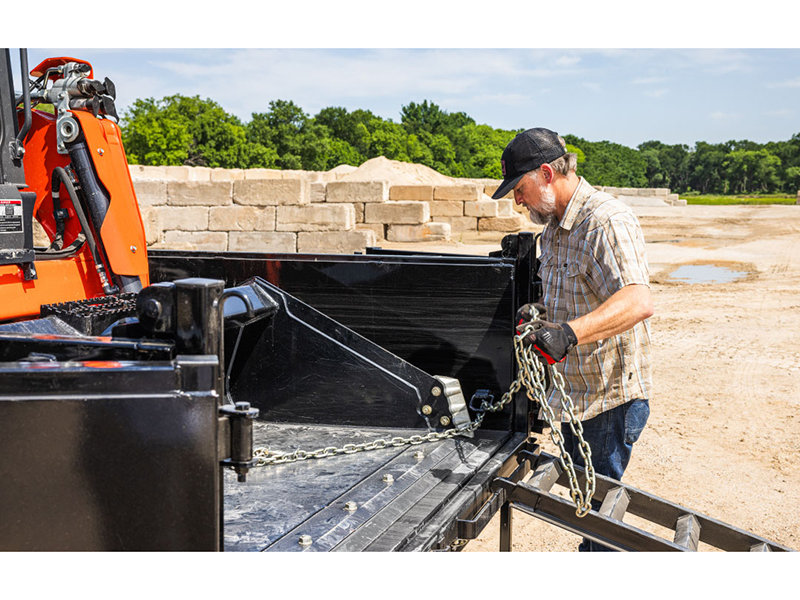

Tie-downs - (4) 1/2 in. D-Rings inside bed to secure equipment

Break-away kit - Complete system with breakaway cable
