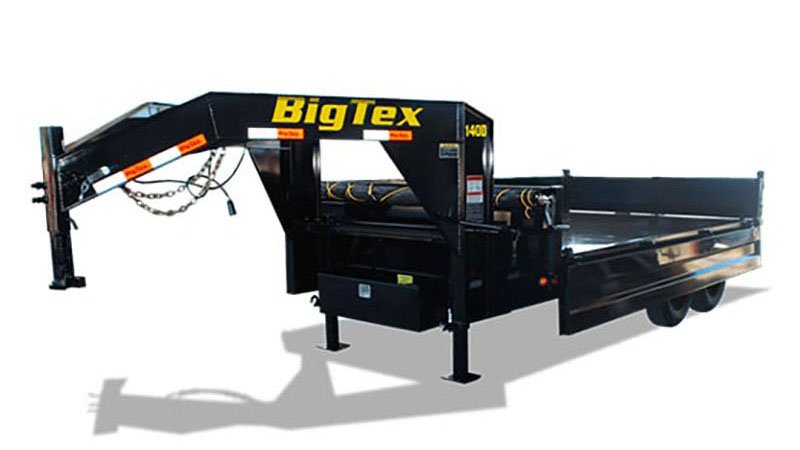

2024 Big Tex Trailers 14OD-GN Heavy Duty Over The Axle Gooseneck Dump Trailers

Black • New Utility Trailers

2024 Big Tex Trailers 14OD-GN Heavy Duty Over The Axle Gooseneck Dump Trailers in Hollister, California - Photo 1
2024 Big Tex Trailers 14OD-GN Heavy Duty Over The Axle Gooseneck Dump Trailers in Hollister, California - Photo 2
2024 Big Tex Trailers 14OD-GN Heavy Duty Over The Axle Gooseneck Dump Trailers in Hollister, California - Photo 3
2024 Big Tex Trailers 14OD-GN Heavy Duty Over The Axle Gooseneck Dump Trailers in Hollister, California - Photo 4
2024 Big Tex Trailers 14OD-GN Heavy Duty Over The Axle Gooseneck Dump Trailers in Hollister, California - Photo 5
2024 Big Tex Trailers 14OD-GN Heavy Duty Over The Axle Gooseneck Dump Trailers in Hollister, California - Photo 6
2024 Big Tex Trailers 14OD-GN Heavy Duty Over The Axle Gooseneck Dump Trailers in Hollister, California - Photo 7
Previous
Next
2024 Big Tex Trailers 14OD-GN Heavy Duty Over The Axle Gooseneck Dump Trailers in Hollister, California - Photo 1
2024 Big Tex Trailers 14OD-GN Heavy Duty Over The Axle Gooseneck Dump Trailers in Hollister, California - Photo 2
2024 Big Tex Trailers 14OD-GN Heavy Duty Over The Axle Gooseneck Dump Trailers in Hollister, California - Photo 3
2024 Big Tex Trailers 14OD-GN Heavy Duty Over The Axle Gooseneck Dump Trailers in Hollister, California - Photo 4
2024 Big Tex Trailers 14OD-GN Heavy Duty Over The Axle Gooseneck Dump Trailers in Hollister, California - Photo 5
2024 Big Tex Trailers 14OD-GN Heavy Duty Over The Axle Gooseneck Dump Trailers in Hollister, California - Photo 6
2024 Big Tex Trailers 14OD-GN Heavy Duty Over The Axle Gooseneck Dump Trailers in Hollister, California - Photo 7
Previous
Next

Request More Information

By pressing SUBMIT, you agree that DX1, LLC and Hollister Powersports may call/text you at the number provided, for either informational or marketing purposes, using an automatic telephone dialing system or pre-recorded/artificial voices. Msg/data rates may apply. You don’t need to consent as a condition of any purchase & you may revoke your consent at any time. You also agree to our Privacy Statement & Terms of Use.
Is your work always changing and requiring you to adapt on the fly? Then you need a trailer that does the same. Versatility is the name of the game for the 14OD Over-The-Axle Dump Trailer, built to ensure that you’re prepared to take on whatever type of load comes your way. Available in either gooseneck or bumper pull configurations, its full 96"-wide body is both strong and spacious—perfect for larger loads. And when faced with a heavy-duty haul, its fold-down side panels make loading and unloading it a snap. Ready for anything, the 14OD is here to change how you work.
Request More Information Print Brochure
Get Prequalified
Calculate Payment
Compare Models Insurance Quote

2024 Big Tex Trailers 14OD-GN Heavy Duty Over The Axle Gooseneck Dump Trailers

Condition
New
Category
Utility Trailers
Model Type
Deck-Over Dump Trailers
Model Code
14OD-14GN
Color
Black

Features

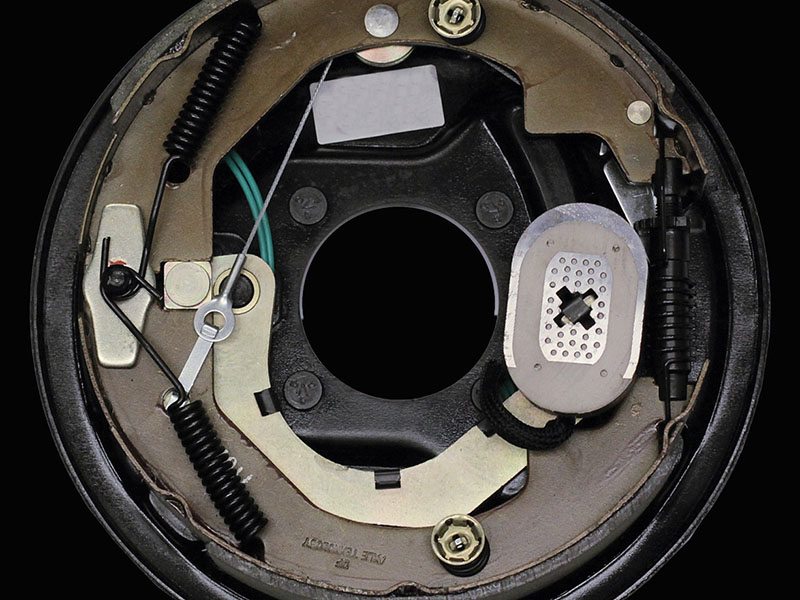

  • EFFORTLESS MAINTENANCE: Forward, self-adjusting brakes make brake maintenance a breeze. The system automatically adjusts the brake shoes as they wear down, eliminating the need for manual adjustments.

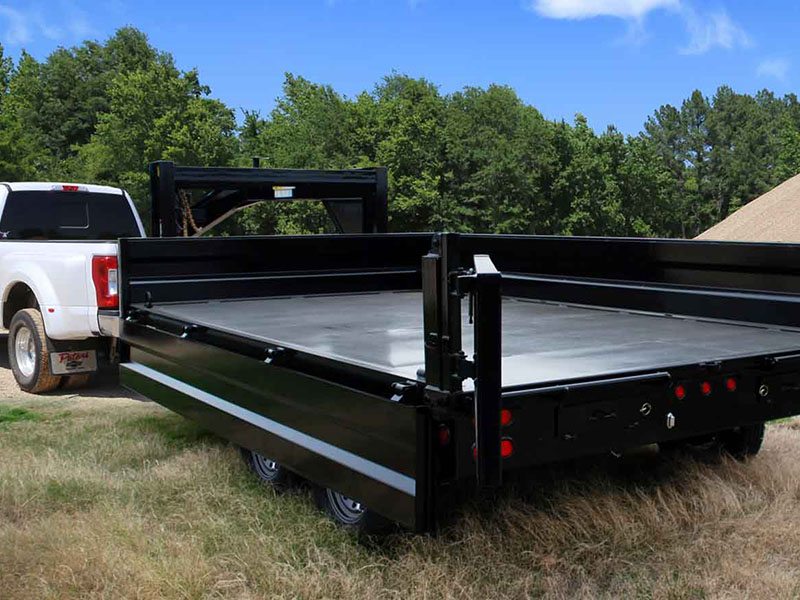

  • REAR COMBO GATE: A multi-functional rear gate with both barn doors and spreader gate that makes it easy to load, unload, or spread

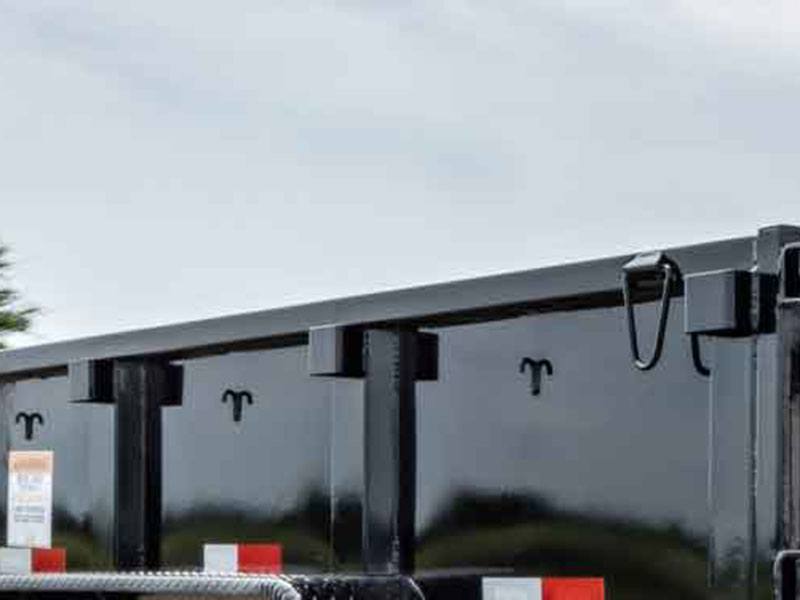

  • STRENGTH AND VERSATILITY: This model has a 2" square tubing top rail for added strength, to complement the stake pockets for added cargo control and ability to support aftermarket side extensions.

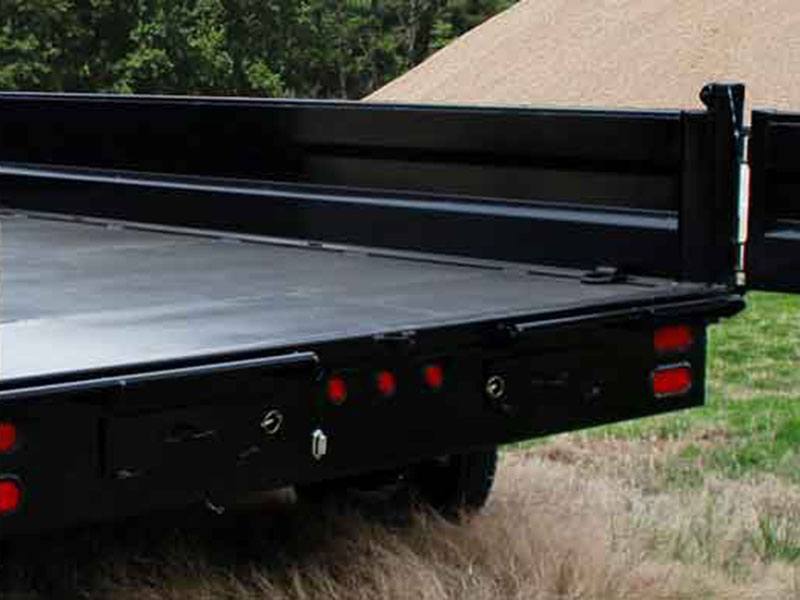

  • 10-GAUGE STEEL FLOOR: Built for long-lasting durability that’s easy to maintain, its heavy floor can take a beating and keep going

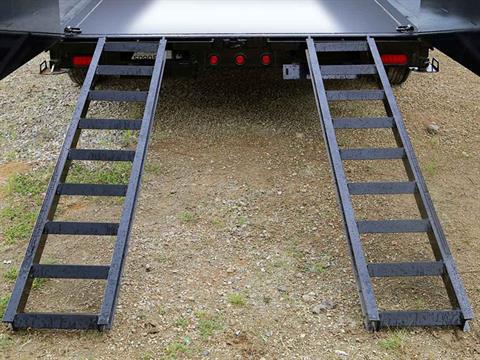

  • STANDARD 7' RAMPS: Comes standard with 4 D-rings to secure equipment and ramps, ready to get your heavy equipment to the big job.

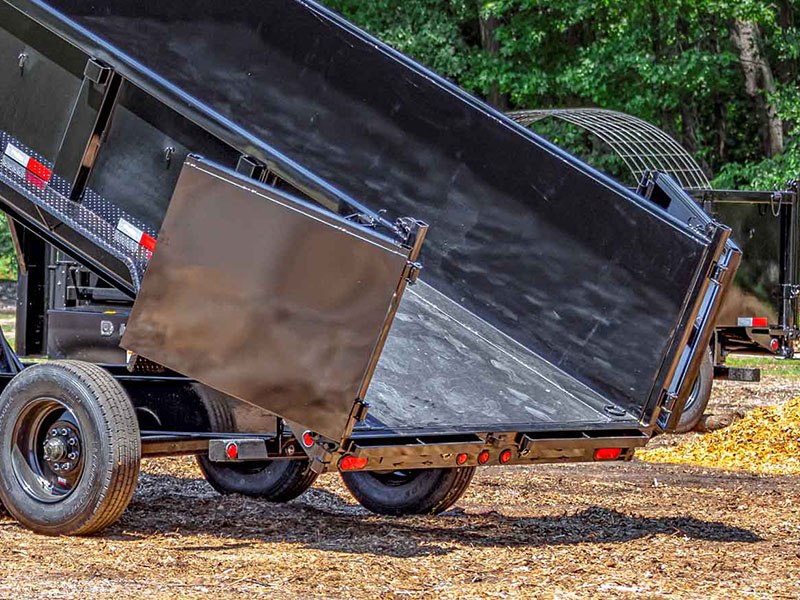

  • 18" TALL, 12-GAUGE FOLD-DOWN SIDE PANELS: Versatile fold-down side panels that enable easier loading and unloading of cargo or aggregates.
  • J-hooks - Along sides and rear for cargo control
  • Ram - Self-contained single cylinder lift
  • Storage - Lockable pump and battery box mounted in front of bed

General Information

Manufacturer
Big Tex Trailers
Model Year
2024
Model
14OD-GN Heavy Duty Over The Axle Gooseneck Dump Trailers
Model Code
14OD-14GN
Color
Black

Body

Floor
10 ga. smooth steel
Sides

Dump body - 18 in. tall, drop-down (12 gauge)

18 in. tall, drop-down (12 ga.)

Dimensions

Weight
Empty - 5,070 lb.
Bed Length
14 ft.
Bed Width
96 in.
Deck Height
36-1/4 in.
Side Height
Dump - 18 in.
Gross Vehicle Weight Rating (GVWR)
14,000 lb.

Operational

Brakes
Forward self-adjusting electric
Tires

ST235 / 80 R-16 load range E radial

Spare mount - Side

Hitch
Gooseneck
Carrying Capacity

Load - 8,930 lb.

Cargo - 6.2 cu. yd.

Doors
Gate - Rear combo gate (Barn and spreader gate)
Tongue
12 in. I-Beam, 14 lb.
Electrical

Trailer plug - 7-way RV

Lights - Recessed, grommet-mounted L.E.D. lighting

Wiring - Sealed, modular cold-weather harness

Battery - 12V deep cycle

Charger - 5A 110V on board battery charger

Power - Power up / Power down movement

Axle(s)

Tandem

2 - 7,000 lb. premium, cambered with quick-lubricating hubs

Ramp
7 ft. rear slide-in
Coupler

Round adjustable pin 2-5/16 in. gooseneck

Pull type - Gooseneck

Jack
Dual 12,000 lb. drop-leg (Side wind)

Other

Frame

12 in. I-Beam, 14 lb.

Cross-members - 3 in. channel on 16 in. centers

Top rail - 2 x 2 in. square tubing

Paint
Type - Professional finish with primer standard
Suspension
Multi-leaf slipper spring with equalizer
Wheels

Bolt pattern - 8-Lug

Black mod steel

Safety Features

Safety chains - 3/8 in. Grd. 70 with safety latch hook (2 ea)

Tie-downs - (4) 1/2 in. D-rings inside bed to secure equipment, Along sides and rear for cargo control

Break-away kit - Complete system with breakaway cable
