2025 Big Tex Trailers 14PH Single Wheel Tandem Axle Pintle Trailers 20+5 ft.

Black • New Equipment Trailers

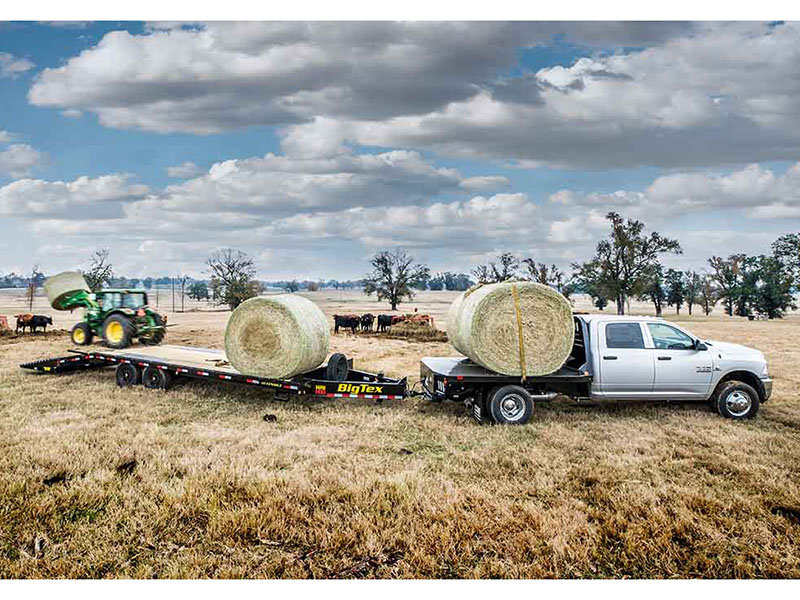

2025 Big Tex Trailers 14PH Single Wheel Tandem Axle Pintle Trailers 20+5 ft. in Hollister, California - Photo 1

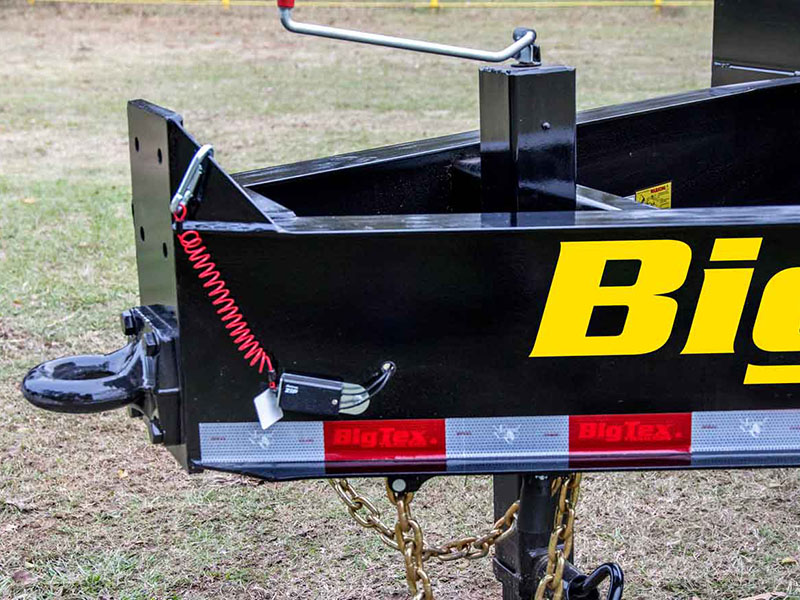

2025 Big Tex Trailers 14PH Single Wheel Tandem Axle Pintle Trailers 20+5 ft. in Hollister, California - Photo 2

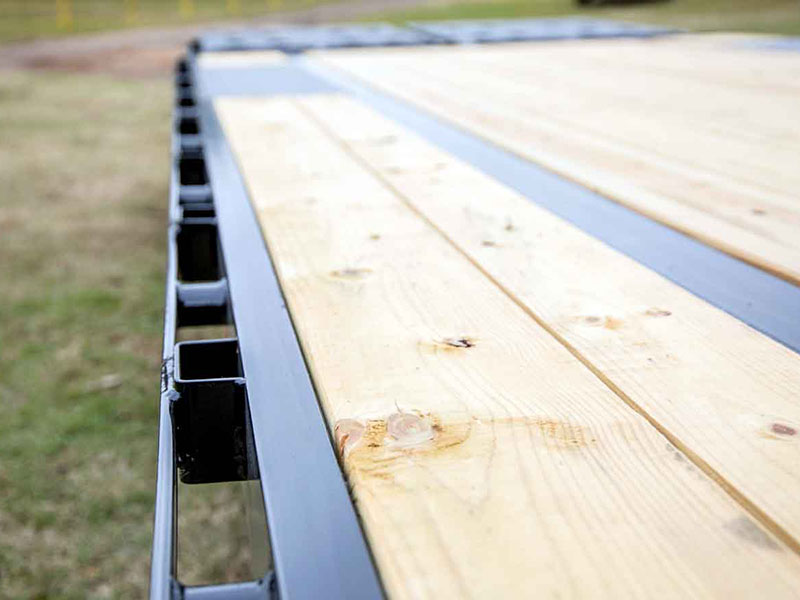

2025 Big Tex Trailers 14PH Single Wheel Tandem Axle Pintle Trailers 20+5 ft. in Hollister, California - Photo 3

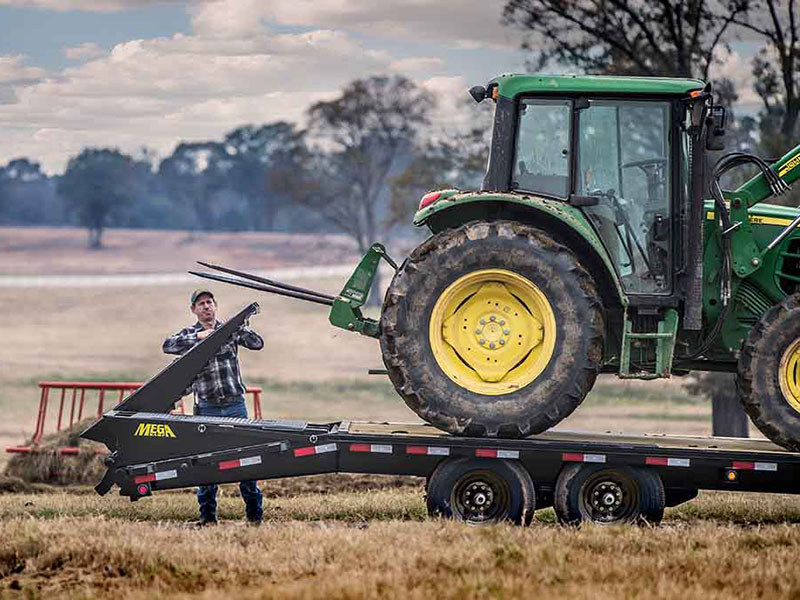

2025 Big Tex Trailers 14PH Single Wheel Tandem Axle Pintle Trailers 20+5 ft. in Hollister, California - Photo 4

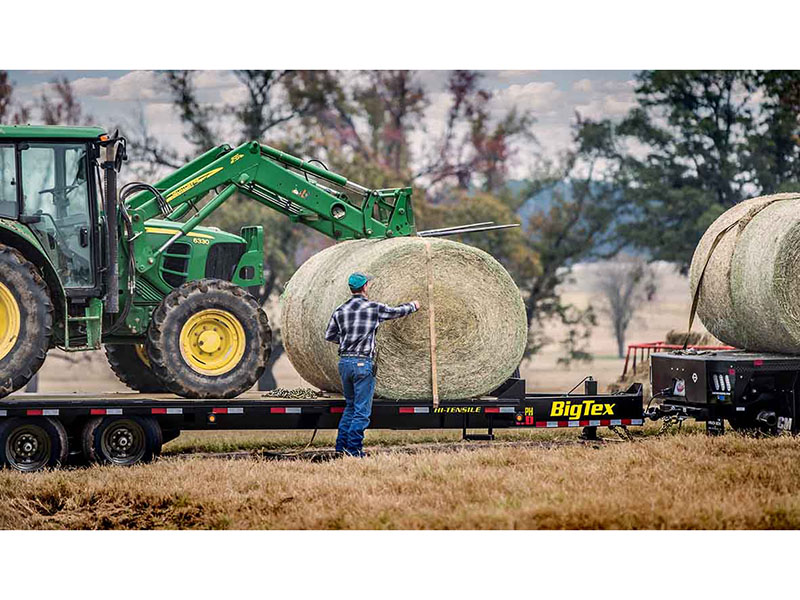

2025 Big Tex Trailers 14PH Single Wheel Tandem Axle Pintle Trailers 20+5 ft. in Hollister, California - Photo 5

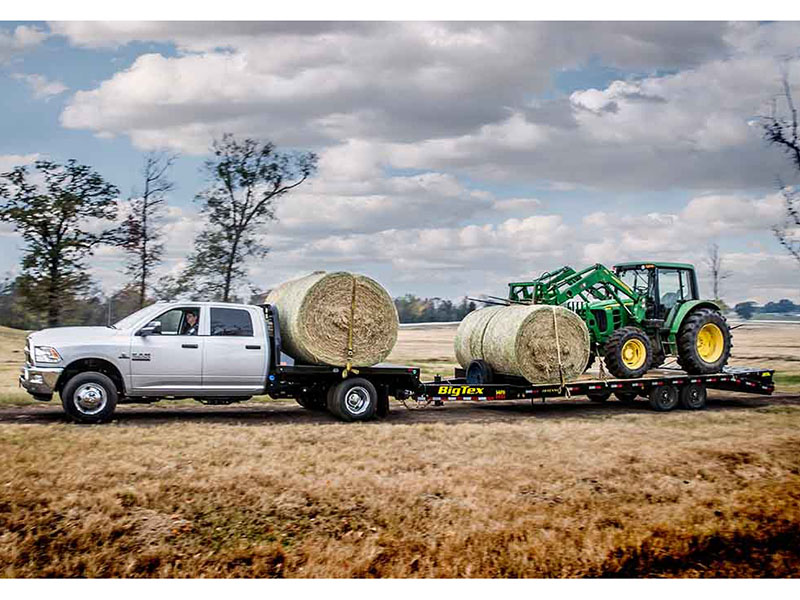

2025 Big Tex Trailers 14PH Single Wheel Tandem Axle Pintle Trailers 20+5 ft. in Hollister, California - Photo 6

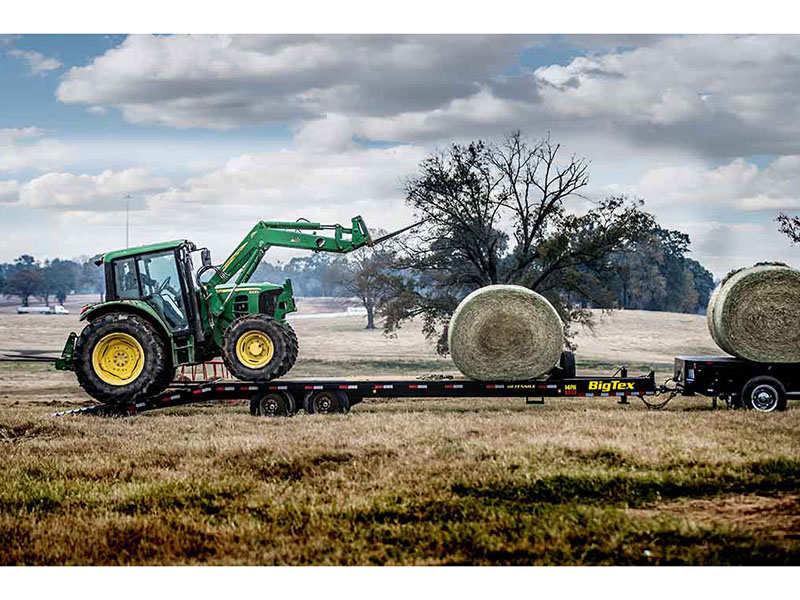

2025 Big Tex Trailers 14PH Single Wheel Tandem Axle Pintle Trailers 20+5 ft. in Hollister, California - Photo 7

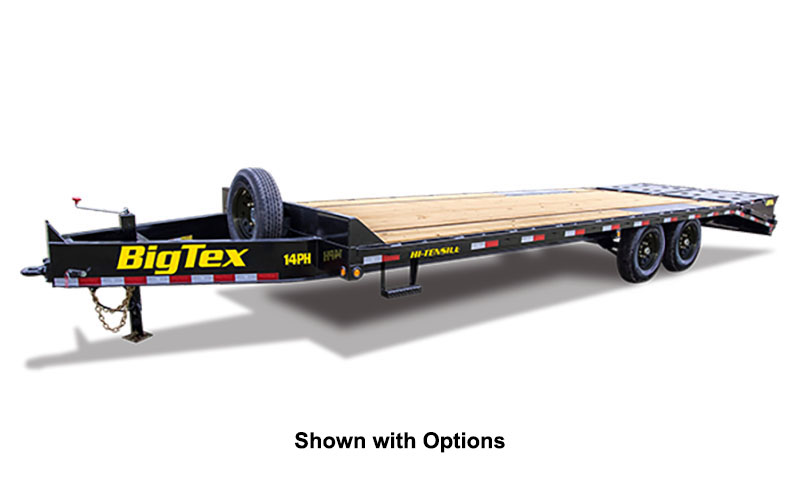

2025 Big Tex Trailers 14PH Single Wheel Tandem Axle Pintle Trailers 20+5 ft. in Hollister, California - Photo 8
Previous
Next
2025 Big Tex Trailers 14PH Single Wheel Tandem Axle Pintle Trailers 20+5 ft. in Hollister, California - Photo 1
2025 Big Tex Trailers 14PH Single Wheel Tandem Axle Pintle Trailers 20+5 ft. in Hollister, California - Photo 2
2025 Big Tex Trailers 14PH Single Wheel Tandem Axle Pintle Trailers 20+5 ft. in Hollister, California - Photo 3
2025 Big Tex Trailers 14PH Single Wheel Tandem Axle Pintle Trailers 20+5 ft. in Hollister, California - Photo 4
2025 Big Tex Trailers 14PH Single Wheel Tandem Axle Pintle Trailers 20+5 ft. in Hollister, California - Photo 5
2025 Big Tex Trailers 14PH Single Wheel Tandem Axle Pintle Trailers 20+5 ft. in Hollister, California - Photo 6
2025 Big Tex Trailers 14PH Single Wheel Tandem Axle Pintle Trailers 20+5 ft. in Hollister, California - Photo 7
2025 Big Tex Trailers 14PH Single Wheel Tandem Axle Pintle Trailers 20+5 ft. in Hollister, California - Photo 8
Previous
Next

Request More Information

By pressing SUBMIT, you agree that DX1, LLC and Hollister Powersports may call/text you at the number provided, for either informational or marketing purposes, using an automatic telephone dialing system or pre-recorded/artificial voices. Msg/data rates may apply. You don’t need to consent as a condition of any purchase & you may revoke your consent at any time. You also agree to our Privacy Statement & Terms of Use.
Is your vehicle equipped with a pintle hitch to take on heavy-duty towing jobs? Built for rugged and off-road conditions, the sturdy and reliable 14PH Single Wheel Tandem Axle Pintle Trailer is made for your needs. Perfect for agricultural and industrial operations, the 14PH delivers exceptional performance at an economical cost. It has standard features such as two 7K axles, spare tire and wheel, LED lighting package, and a low-profile bed with a pierced-beam frame. Hauling everything from construction materials and machinery to large hay bales, this is a trailer that delivers a huge bang for your buck.
Request More Information Print Brochure
Get Prequalified
Calculate Payment
Schedule a Test Ride Compare Models Insurance Quote

2025 Big Tex Trailers 14PH Single Wheel Tandem Axle Pintle Trailers 20+5 ft.

Condition
New
Category
Equipment Trailers
Model Type
Deck-Over Pintles
Model Code
14PH-20+5
Color
Black

Features

  • EFFORTLESS MAINTENANCE: Forward, self-adjusting brakes make brake maintenance a breeze. The system automatically adjusts the brake shoes as they wear down, eliminating the need for manual adjustments.
  • ROBUST ADJUSTABLE PINTLE RING: A 3" ID Pintle ring coupler creates a strong, secure connection with tow vehicles equipped with pintle hitches.
  • COMPREHENSIVE LOAD SECUREMENT: A standard 3/8" rub rail, stake pockets, and 1-1/4" pipe chain spool secures your load to ensure safe and efficient transportation.
  • Dovetail - 5 ft. cleated
  • Steps and handles - (2) Side bed steps

General Information

Manufacturer
Big Tex Trailers
Model Year
2025
Model
14PH Single Wheel Tandem Axle Pintle Trailers 20+5 ft.
Model Code
14PH-20+5
Color
Black

Body

Floor
Treated pine
Paint/Finish
Type - Professional finish with primer standard
Chain Rail Spool
Pipe chain spools - 1-1/4 in. between stake pockets pockets
Stake Pockets
Along both sides, 24 in. O.C. (Quantity varies by length)
Tongue

Storage tray in tongue

Length - 70 in.

Ramp
5 ft. double hinged, spring assisted flip-over
Frame

12 in. I-Beam, 14 lb.

Cross-members - 3 in. channel

Front stop rail - 3/16 in. fabricated

Rubrail - 3/8 in. heavy duty rub rail

Side rail - 5 in. channel

Dimensions

Deck Length
Bed - 25 ft.
Deck Width
Bed - 102 in.

Electrical

Electrical
Trailer plug - 7-way RV
Wiring
Sealed, modular cold-weather harness
Lighting
Recessed, grommet-mounted L.E.D.

Operational

Axles
2 - 7,000 lb. premium, with quick-lubricating hubs
Safety Features

Safety chains - 3/8 in. grade 70 with latch hook (2 ea)

Break-away kit - Complete breakaway system with zip breakaway cable

Coupler

3 in. ID pintle ring

Pull type - Bumperpull

Jack
12,000 lb. drop-leg (Top wind)
Suspension
Multi-leaf slipper spring with equalizer
Brakes
Forward self-adjusting electric on both axles
Tires

ST235 / 80 R-16 load range E radial

Spare mount - Front

Spare - ST235 / 80 R-16 load range E radial

Wheels
Bolt pattern - 8-lug

Weights

Weight
Empty - 4,580 lb.
Gross Vehicle Wt Rating (GVWR)
15,900 lb.
Payload Capacity
Cargo - 11,320 lb.
