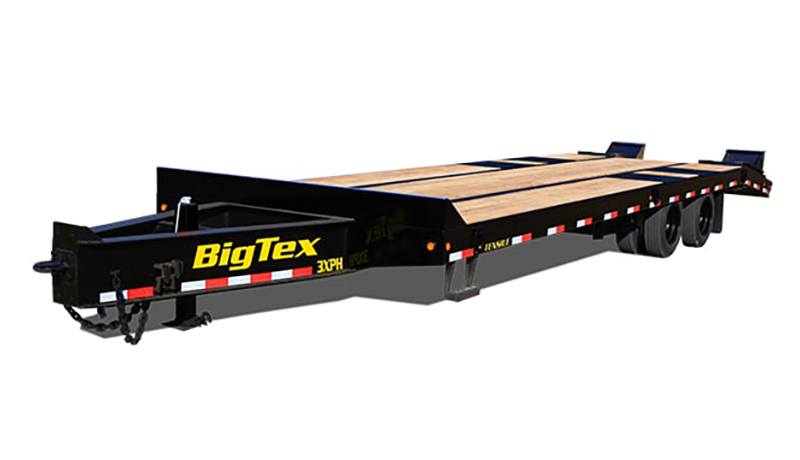

2024 Big Tex Trailers 3XPH Super Duty Tandem Dual Wheel Pintle Trailers 25+5 ft.

Black • New Equipment Trailers

2024 Big Tex Trailers 3XPH Super Duty Tandem Dual Wheel Pintle Trailers 25+5 ft. in Hollister, California - Photo 1
2024 Big Tex Trailers 3XPH Super Duty Tandem Dual Wheel Pintle Trailers 25+5 ft. in Hollister, California - Photo 2
2024 Big Tex Trailers 3XPH Super Duty Tandem Dual Wheel Pintle Trailers 25+5 ft. in Hollister, California - Photo 3
2024 Big Tex Trailers 3XPH Super Duty Tandem Dual Wheel Pintle Trailers 25+5 ft. in Hollister, California - Photo 4
Previous
Next
2024 Big Tex Trailers 3XPH Super Duty Tandem Dual Wheel Pintle Trailers 25+5 ft. in Hollister, California - Photo 1
2024 Big Tex Trailers 3XPH Super Duty Tandem Dual Wheel Pintle Trailers 25+5 ft. in Hollister, California - Photo 2
2024 Big Tex Trailers 3XPH Super Duty Tandem Dual Wheel Pintle Trailers 25+5 ft. in Hollister, California - Photo 3
2024 Big Tex Trailers 3XPH Super Duty Tandem Dual Wheel Pintle Trailers 25+5 ft. in Hollister, California - Photo 4
Previous
Next

Request More Information

By pressing SUBMIT, you agree that DX1, LLC and Hollister Powersports may call/text you at the number provided, for either informational or marketing purposes, using an automatic telephone dialing system or pre-recorded/artificial voices. Msg/data rates may apply. You don’t need to consent as a condition of any purchase & you may revoke your consent at any time. You also agree to our Privacy Statement & Terms of Use.
The biggest jobs require a super-duty trailer that never quits. A trailer that never gives us, the 3XPH Super Duty Tandem Dual Axle Pintle Trailer is unyielding, and with 15K axles and premium adjustable suspension it’s built to tackle the most heavy-duty and high-capacity jobs. It’s ready to haul extremely heavy equipment, machinery, and large loads with a 30,000 lbs G.V.W.R. And you won’t have to worry about loading and unloading being difficult with its heavy-duty, spring-assist, double-hinged ramps. With this trailer, the big jobs don’t stand a chance.
Request More Information Print Brochure
Get Prequalified
Calculate Payment
Schedule a Test Ride Compare Models Insurance Quote

2024 Big Tex Trailers 3XPH Super Duty Tandem Dual Wheel Pintle Trailers 25+5 ft.

Condition
New
Category
Equipment Trailers
Model Type
Deck-Over Pintles
Model Code
3XPH-25+5
Color
Black

Features

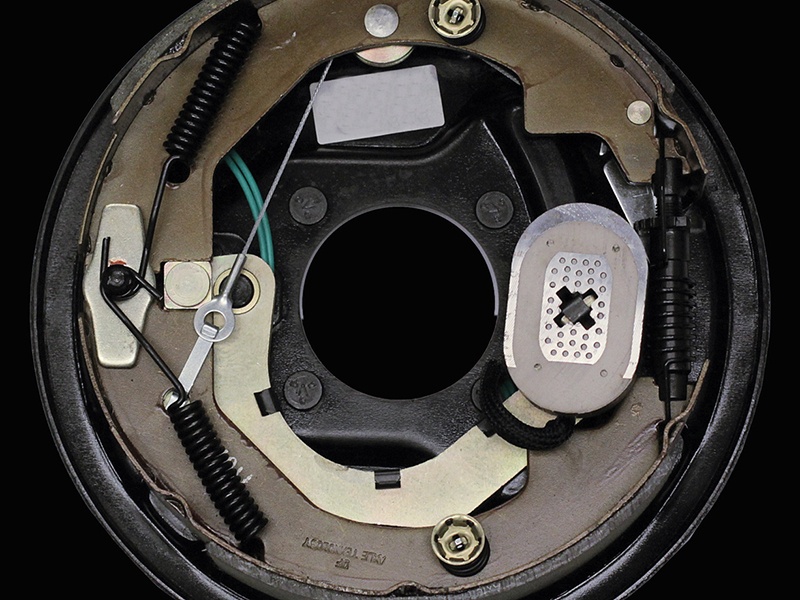

  • EFFORTLESS MAINTENANCE: Forward, self-adjusting brakes make brake maintenance a breeze. The system automatically adjusts the brake shoes as they wear down, eliminating the need for manual adjustments.
  • COMPREHENSIVE LOAD SECUREMENT: A standard 3/8" rub rail, stake pockets, and 1-1/4" pipe chain spool secures your load to ensure safe and efficient transportation.

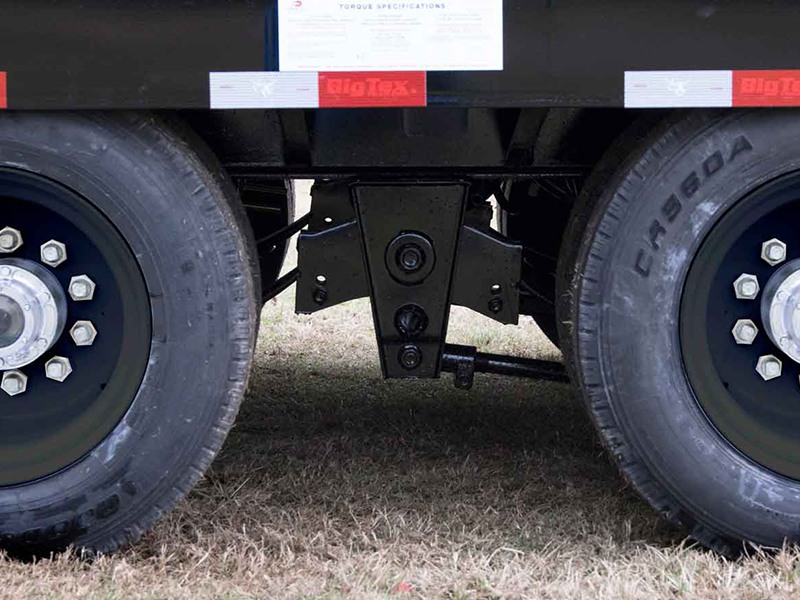

  • HEAVY-DUTY ADJUSTABLE SUSPENSION: Standard equipped with a heavy duty adjustable suspension to handle the biggest loads.
  • Dovetail - 5 ft. cleated
  • Steps and handles - (2) Side bed steps

General Information

Manufacturer
Big Tex Trailers
Model Year
2024
Model
3XPH Super Duty Tandem Dual Wheel Pintle Trailers 25+5 ft.
Model Code
3XPH-25+5
Color
Black

Body

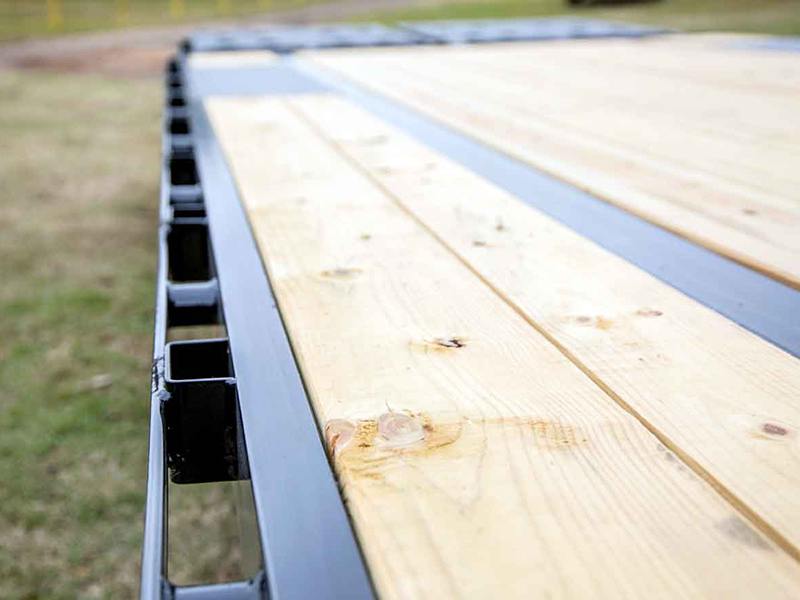

Floor
Treated pine
Paint/Finish
Paint type - Professional finish with primer standard
Chain Rail Spool
Pipe chain spools - 1-1/4 in. between stake pockets pockets
Stake Pockets
Along both sides, 24 in. O.C. (Quantity varies by length)
Tongue
Length - 70 in.
Ramp
5 ft. double hinged, spring assisted flip-over
Frame

12 in. I-Beam, 22 lb.

Cross-members - 6 in. Jr. I-Beam, 16 in. centers

Front stop rail - 3/16 in. fabricated

Rubrail - 3/8 in. heavy duty

Side rail - 8 in. channel

Dimensions

Deck Length
Bed - 30 ft.
Deck Width
Bed - 102 in.

Electrical

Electrical
Trailer plug - 7-way RV
Wiring
Sealed, modular cold-weather harness
Lighting
Recessed, grommet-mounted L.E.D.

Operational

Axles
2 - 15,000 lb. premium, cambered with oil bath and Valcrum caps
Safety Features

Safety chains - 1/2 in. Grd. 80 with safety latch hook (2 ea)

Break-away kit - Complete breakaway system with zip breakaway cable

Coupler

3 in. ID pintle ring

Pull type - Bumperpull

Jack
12,000 lb. drop-leg (Top wind)
Suspension
Heavy duty 44,000 lb. adjustable
Brakes
Forward self-adjusting electric on both axles
Tires

ST215 / 75 R-17.5 load range H radial

Spare mount - Front

Spare - ST215 / 75 R-17.5 load range H radial

Hitch
Pintle
Wheels

Bolt pattern - 8 x 275 mm BC Hub

Mudflaps - Standard

Weights

Weight
Empty - 6,300 lb.
Gross Vehicle Wt Rating (GVWR)
30,000 lb.
Payload Capacity
Cargo - 23,700 lb.
