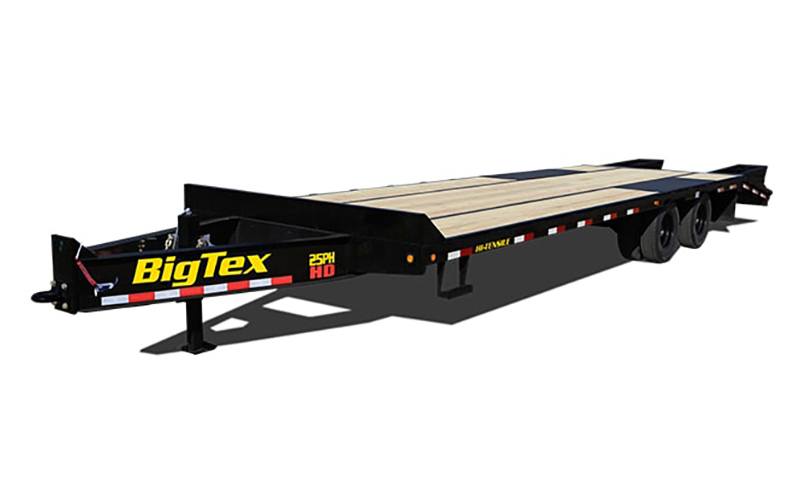

2024 Big Tex Trailers 25PH Heavy Duty Tandem Dual Wheel Pintle Trailers 20+5 ft.

Black • New Equipment Trailers

2024 Big Tex Trailers 25PH Heavy Duty Tandem Dual Wheel Pintle Trailers 20+5 ft. in Hollister, California - Photo 1
2024 Big Tex Trailers 25PH Heavy Duty Tandem Dual Wheel Pintle Trailers 20+5 ft. in Hollister, California - Photo 2
2024 Big Tex Trailers 25PH Heavy Duty Tandem Dual Wheel Pintle Trailers 20+5 ft. in Hollister, California - Photo 3
2024 Big Tex Trailers 25PH Heavy Duty Tandem Dual Wheel Pintle Trailers 20+5 ft. in Hollister, California - Photo 4
Previous
Next
2024 Big Tex Trailers 25PH Heavy Duty Tandem Dual Wheel Pintle Trailers 20+5 ft. in Hollister, California - Photo 1
2024 Big Tex Trailers 25PH Heavy Duty Tandem Dual Wheel Pintle Trailers 20+5 ft. in Hollister, California - Photo 2
2024 Big Tex Trailers 25PH Heavy Duty Tandem Dual Wheel Pintle Trailers 20+5 ft. in Hollister, California - Photo 3
2024 Big Tex Trailers 25PH Heavy Duty Tandem Dual Wheel Pintle Trailers 20+5 ft. in Hollister, California - Photo 4
Previous
Next

Request More Information

By pressing SUBMIT, you agree that DX1, LLC and Hollister Powersports may call/text you at the number provided, for either informational or marketing purposes, using an automatic telephone dialing system or pre-recorded/artificial voices. Msg/data rates may apply. You don’t need to consent as a condition of any purchase & you may revoke your consent at any time. You also agree to our Privacy Statement & Terms of Use.
Putting your nose to the grindstone? Need a trailer that does too? The hardworking 25PH Heavy Duty Tandem Dual Axle Pintle Trailer is here to stand by your side, hauling heavy-duty loads in the most rugged and challenging conditions. This powerful trailer has it all; two 12K axles, a low-profile bed with a pierced-beam frame, and heavy-duty adjustable suspension. It’s a robust, pintle hitch trailer that gets the heavy work done in agricultural, construction, and industrial settings. Ready to take on the heaviest of loads? This trailer is—and so will you.
Request More Information Print Brochure
Get Prequalified
Calculate Payment
Schedule a Test Ride Compare Models Insurance Quote

2024 Big Tex Trailers 25PH Heavy Duty Tandem Dual Wheel Pintle Trailers 20+5 ft.

Condition
New
Category
Equipment Trailers
Model Type
Deck-Over Pintles
Model Code
25PH-20+5
Color
Black

Features

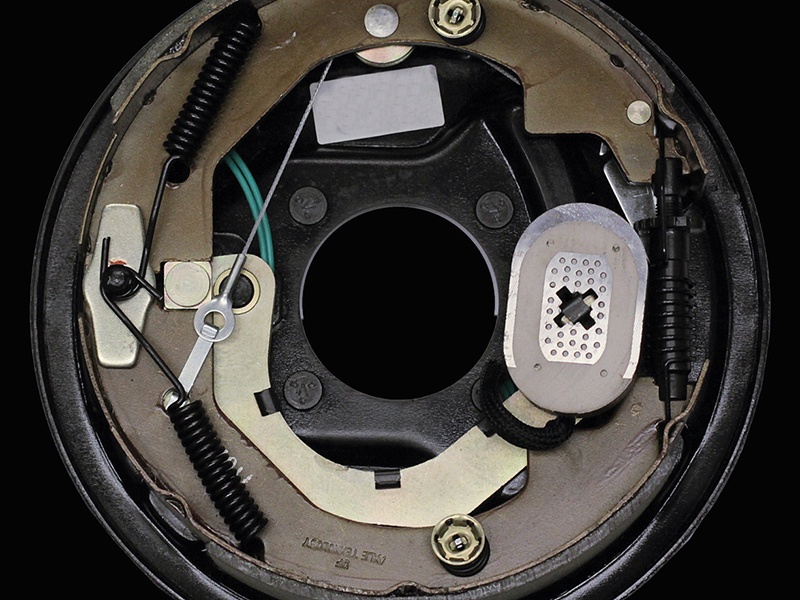

  • EFFORTLESS MAINTENANCE: Forward, self-adjusting brakes make brake maintenance a breeze. The system automatically adjusts the brake shoes as they wear down, eliminating the need for manual adjustments.
  • COMPREHENSIVE LOAD SECUREMENT: A standard 3/8" rub rail, stake pockets, and 1-1/4" pipe chain spool secures your load to ensure safe and efficient transportation.

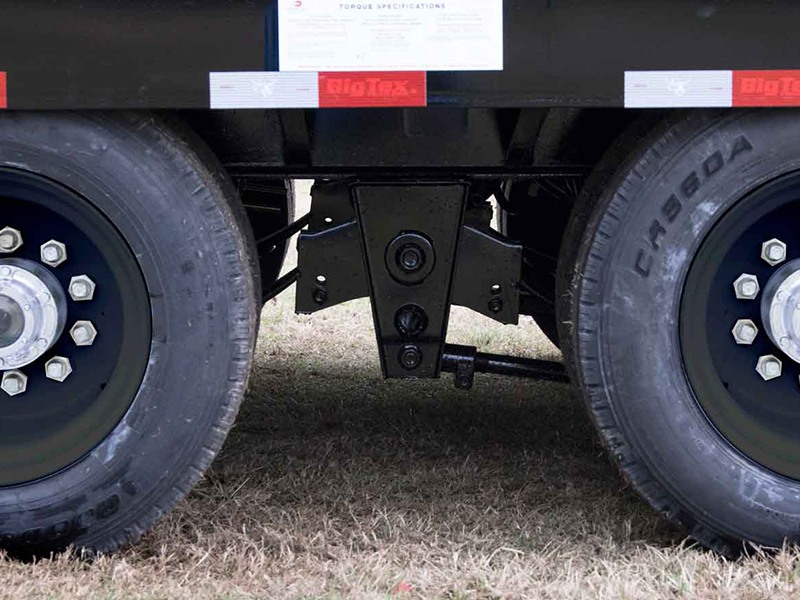

  • HEAVY-DUTY ADJUSTABLE SUSPENSION: Standard equipped with a heavy duty adjustable suspension to handle the biggest loads.
  • Steps and handles - (2) Side bed steps

General Information

Manufacturer
Big Tex Trailers
Model Year
2024
Model
25PH Heavy Duty Tandem Dual Wheel Pintle Trailers 20+5 ft.
Model Code
25PH-20+5
Color
Black

Body

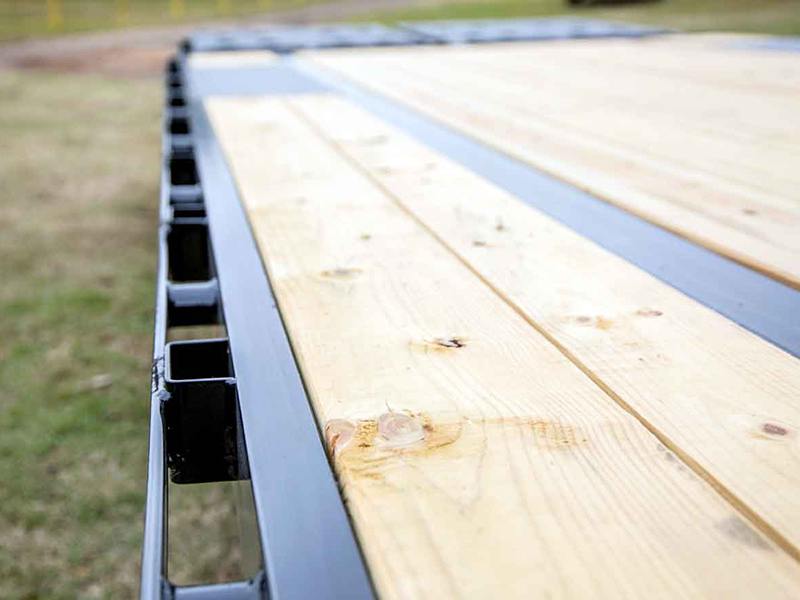

Floor
Treated pine
Paint/Finish
Paint type - Professional finish with primer standard
Chain Rail Spool
Pipe chain spools - 1-1/4 in. between stake pockets pockets
Stake Pockets
Along both sides, 24 in. O.C. (Quantity varies by length)
Tongue
Length - 70 in.
Ramp
5 ft. double hinged, spring assisted flip-over
Frame

12 in. I-Beam

Cross-members - 3 in. channel

Front stop rail - 3/16 in. fabricated

Rubrail - 3/8 in. heavy duty

Side rail - 8 in. channel

Dimensions

Deck Length
Bed - 25 ft.
Deck Width
Bed - 102 in.

Electrical

Electrical
Trailer plug - 7-way RV
Wiring
Sealed, modular cold-weather harness
Lighting
Recessed, grommet-mounted L.E.D.

Operational

Axles
2 - 12,000 lb. premium, cambered with oil bath and Valcrum caps
Safety Features

Safety chains - 3/8 in. Grd. 70 with safety latch hook (2 ea)

Break-away kit - Complete breakaway system with zip breakaway cable

Coupler

3 in. ID pintle ring

Pull type - Bumperpull

Jack
12,000 lb. drop-leg (Top wind)
Suspension
Heavy-duty 30,000 lb., adjustable
Brakes
Forward self-adjusting electric on both axles
Tires

ST235 / 80 R-16 load range E radial

Spare mount - Front

Spare - ST235 / 80 R-16 load range E radial

Wheels

Bolt pattern - 8-lug

Mudflaps - Standard

Weights

Weight
Empty - 5,800 lb.
Gross Vehicle Wt Rating (GVWR)
25,900 lb.
Payload Capacity
Cargo - 20,100 lb.
