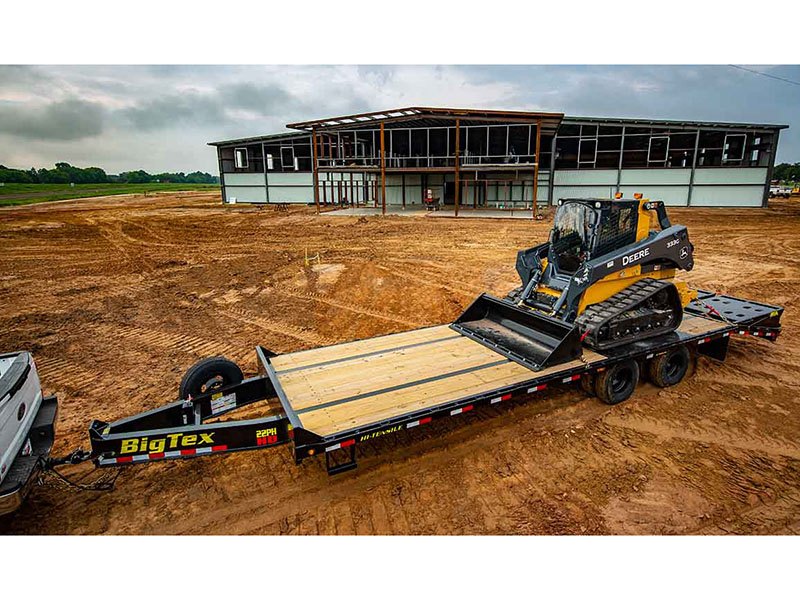

2024 Big Tex Trailers 22PH Tandem Dual Wheel Pintle Trailers 20+5 ft. in Hollister, California - Photo 1
2024 Big Tex Trailers 22PH Tandem Dual Wheel Pintle Trailers 20+5 ft. in Hollister, California - Photo 2
2024 Big Tex Trailers 22PH Tandem Dual Wheel Pintle Trailers 20+5 ft. in Hollister, California - Photo 3
2024 Big Tex Trailers 22PH Tandem Dual Wheel Pintle Trailers 20+5 ft. in Hollister, California - Photo 4
2024 Big Tex Trailers 22PH Tandem Dual Wheel Pintle Trailers 20+5 ft. in Hollister, California - Photo 5
2024 Big Tex Trailers 22PH Tandem Dual Wheel Pintle Trailers 20+5 ft. in Hollister, California - Photo 6
2024 Big Tex Trailers 22PH Tandem Dual Wheel Pintle Trailers 20+5 ft. in Hollister, California - Photo 7
2024 Big Tex Trailers 22PH Tandem Dual Wheel Pintle Trailers 20+5 ft. in Hollister, California - Photo 8
2024 Big Tex Trailers 22PH Tandem Dual Wheel Pintle Trailers 20+5 ft. in Hollister, California - Photo 9
Previous
Next
2024 Big Tex Trailers 22PH Tandem Dual Wheel Pintle Trailers 20+5 ft. in Hollister, California - Photo 1
2024 Big Tex Trailers 22PH Tandem Dual Wheel Pintle Trailers 20+5 ft. in Hollister, California - Photo 2
2024 Big Tex Trailers 22PH Tandem Dual Wheel Pintle Trailers 20+5 ft. in Hollister, California - Photo 3
2024 Big Tex Trailers 22PH Tandem Dual Wheel Pintle Trailers 20+5 ft. in Hollister, California - Photo 4
2024 Big Tex Trailers 22PH Tandem Dual Wheel Pintle Trailers 20+5 ft. in Hollister, California - Photo 5
2024 Big Tex Trailers 22PH Tandem Dual Wheel Pintle Trailers 20+5 ft. in Hollister, California - Photo 6
2024 Big Tex Trailers 22PH Tandem Dual Wheel Pintle Trailers 20+5 ft. in Hollister, California - Photo 7
2024 Big Tex Trailers 22PH Tandem Dual Wheel Pintle Trailers 20+5 ft. in Hollister, California - Photo 8
2024 Big Tex Trailers 22PH Tandem Dual Wheel Pintle Trailers 20+5 ft. in Hollister, California - Photo 9
Previous
Next

Request More Information

By pressing SUBMIT, you agree that DX1, LLC and Hollister Powersports may call/text you at the number provided, for either informational or marketing purposes, using an automatic telephone dialing system or pre-recorded/artificial voices. Msg/data rates may apply. You don’t need to consent as a condition of any purchase & you may revoke your consent at any time. You also agree to our Privacy Statement & Terms of Use.

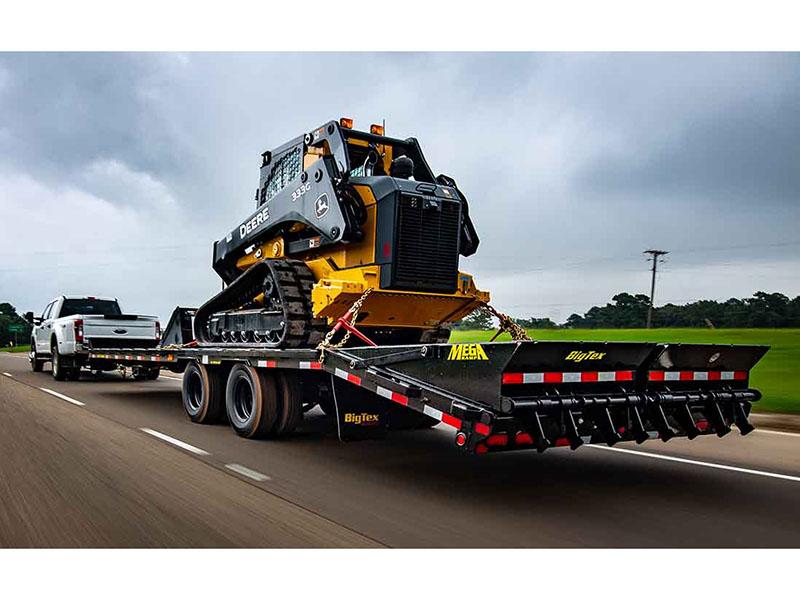

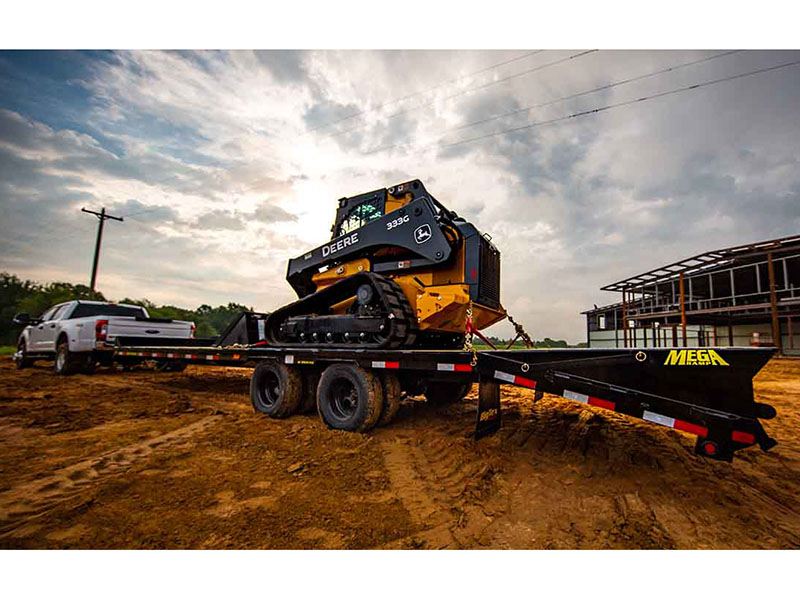

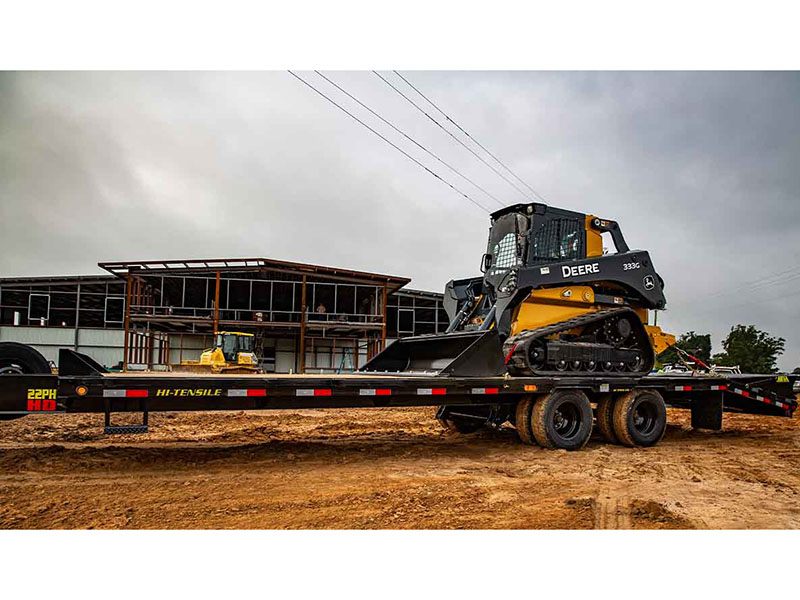

Are you taking on heavy-duty towing jobs with a pintle hitch, but you need more strength? Upgrade to the big and strong 22PH Tandem Dual Wheel Pintle Trailer, a hauler that’s ready to work hard all day long. Perfect for agricultural, construction, and landscaping, the 22PH performs in tough and rugged conditions with standard features such as two 10K axles, spare tire and wheel, LED lighting package, and a low-profile bed with a pierced-beam frame. And with 23,900 lbs G.V.W.R., it’s purpose-built to haul substantial loads and heavy-duty equipment. Hard work pays off; and so does the 22PH.
Request More Information Print Brochure
Calculate Payment
Schedule a Test Ride Compare Models Insurance Quote

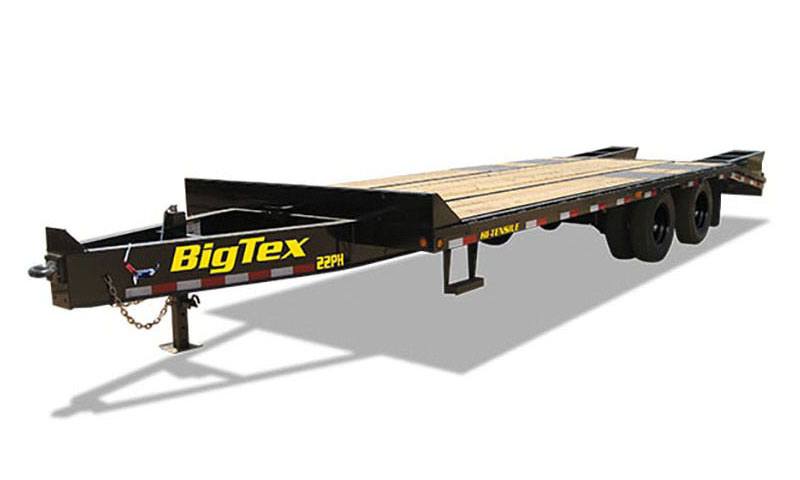

2024 Big Tex Trailers 22PH Tandem Dual Wheel Pintle Trailers 20+5 ft.

Condition
New
Category
Equipment Trailers
Model Type
Deck-Over Pintles
Model Code
22PH-20+5
Color
Black

Features

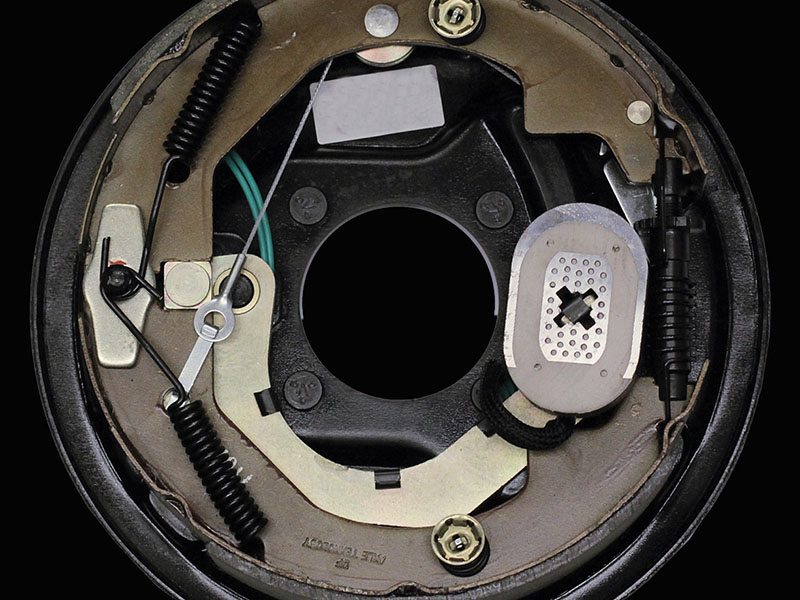

  • EFFORTLESS MAINTENANCE: Forward, self-adjusting brakes make brake maintenance a breeze. The system automatically adjusts the brake shoes as they wear down, eliminating the need for manual adjustments.

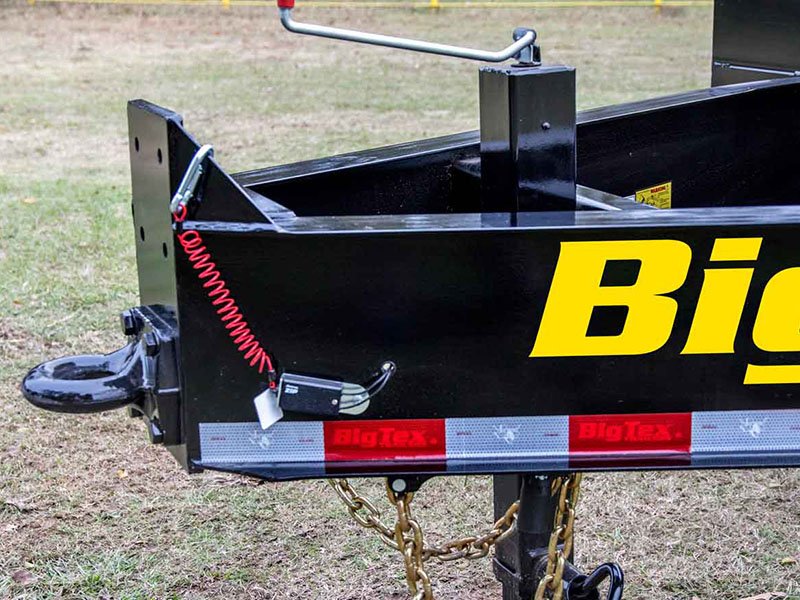

  • ROBUST ADJUSTABLE PINTLE RING: A 3" ID Pintle ring coupler creates a strong, secure connection with tow vehicles equipped with pintle hitches.

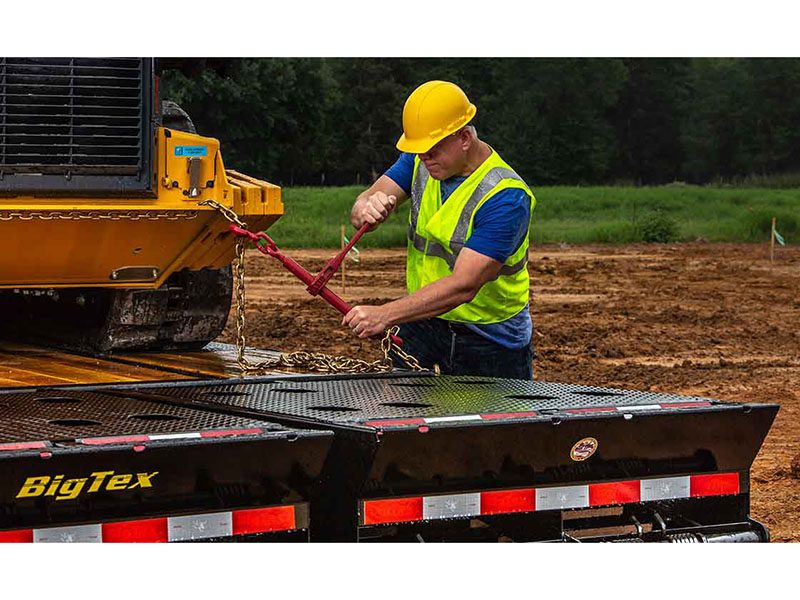

  • COMPREHENSIVE LOAD SECUREMENT: A standard 3/8" rub rail, stake pockets, and 1-1/4" pipe chain spool secures your load to ensure safe and efficient transportation.
  • Dovetail - 5 ft. cleated
  • Steps and handles - (2) Side bed steps

General Information

Manufacturer
Big Tex Trailers
Model Year
2024
Model
22PH Tandem Dual Wheel Pintle Trailers 20+5 ft.
Model Code
22PH-20+5
Color
Black

Body

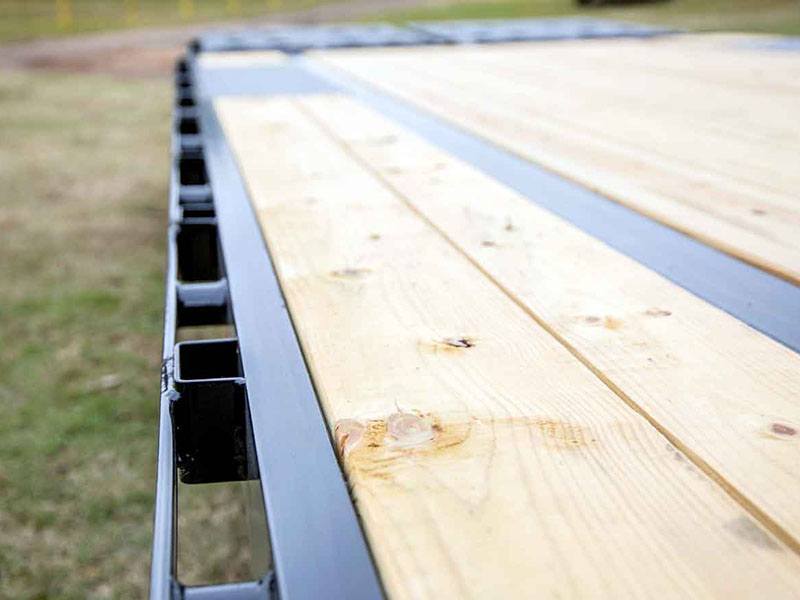

Floor
Treated pine
Paint/Finish
Paint type - Professional finish with primer standard
Chain Rail Spool
Pipe chain spools - 1-1/4 in. between stake pockets pockets
Stake Pockets
Along both sides, 24 in. O.C. (Quantity varies by length)
Tongue
Length - 70 in.
Ramp
5 ft. double hinged, spring assisted flip-over
Frame

12 in. I-Beam

Cross-members - 3 in. channel

Front stop rail - 3/16 in. fabricated

Rubrail - 3/8 in. heavy duty

Side rail - 6 in. channel

Dimensions

Deck Length
Bed - 25 ft.
Deck Width
Bed - 102 in.

Electrical

Electrical
Trailer plug - 7-way RV
Wiring
Sealed, modular cold-weather harness
Lighting
Recessed, grommet-mounted L.E.D.

Operational

Axles
2 - 10,000 lb. premium, cambered with oil bath and Valcrum caps
Safety Features
Safety Chains - 3/8 in. Grd. 70 with safety latch hook (2 ea)

Break-away kit - Complete breakaway system with zip breakaway cable

Coupler

3 in. ID pintle ring

Pull type - Bumperpull

Jack
12,000 lb. drop-leg (Top wind)
Suspension
Heavy-duty 30,000 lb. adjustable
Brakes
Forward self-adjusting electric on both axles
Tires

ST235 / 80 R-16 load range E radial

Spare - ST235 / 80 R-16 load range E radial

Wheels

Bolt pattern - 8-Lug

Mudflaps - Standard

Weights

Weight
Empty - 5,600 lb.
Gross Vehicle Wt Rating (GVWR)
23,900 lb.
Payload Capacity
Cargo - 18,300 lb.
